碳质电阻器 1/2watt 15ohm 5% Carbon Comp
"s Little Demons are small, reliable carbon composition resistors with exceptional strength. They are made tough by a molding process that combines the terminals, insulation and resistive element into an integrated unit. Along with their small size, Little Demons perform with low noise, dissipate heat rapidly and offer high temperature stability.
* Molded Insulation for High Dielectric Strength
* Rugged Construction
* High Surge Capabilities
* Comparable to “Mil” RC07, RC20 and RC32 Types
额定电压DC 350 V
容差 5 %
额定功率 0.5 W
产品系列 OF
电阻 15 Ω
阻值偏差 ±5 %
工作温度Max 130 ℃
工作温度Min -70 ℃
额定电压 350 VDC
安装方式 Through Hole
引脚数 2
封装 Axial

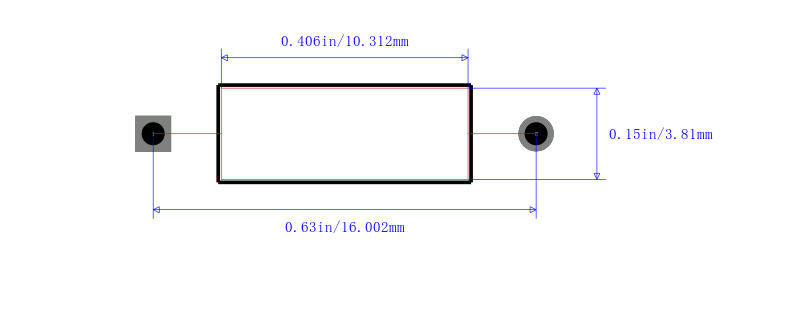

长度 10.3 mm
直径 3.80 mm
脚长度 1.35 in
封装 Axial
工作温度 -70℃ ~ 130℃
产品生命周期 Active
包装方式 Bulk
最小包装 2500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533100060
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OF150JE Ohmite | 当前型号 | 当前型号 |
OF150J Ohmite | 类似代替 | OF150JE和OF150J的区别 |
RC1/2155%R Stackpole Electronics | 功能相似 | OF150JE和RC1/2155%R的区别 |
