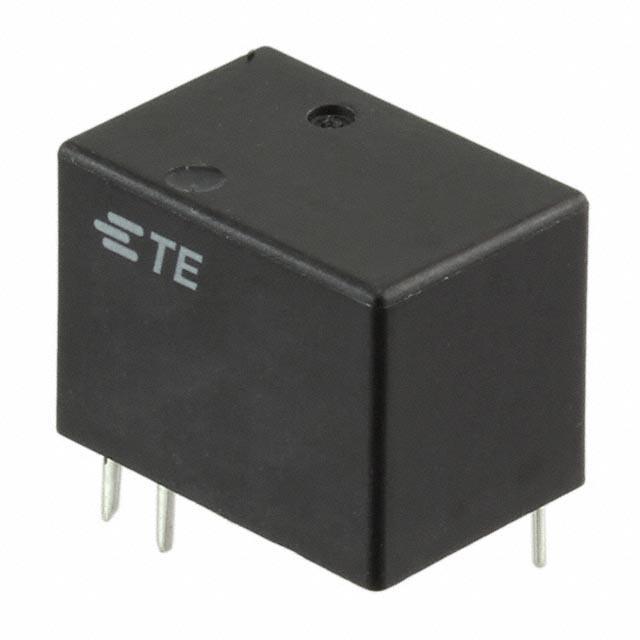

Electromechanical Relay 24VDC 1.28KΩ 1A SPDT 15.4mm 10.4mm 11.2mm THT Miniature Sealed Relay
电信 继电器 SPDT（1 Form C） 通孔
得捷:
RELAY TELECOM SPDT 1A 24VDC
艾睿:
Signal Relay 24VDC 1.28KOhm 1A SPDT15.4x10.4x11.2mm THT Miniature Sealed Relay
Chip1Stop:
Electromechanical Relay SPDT 1A 24VDC 1.28KOhm Through Hole
Verical:
Electromechanical Relay 24VDC 1.28KOhm 1A SPDT 15.4mm 10.4mm 11.2mm THT Miniature Sealed Relay
Newark:
# OEG - TE CONNECTIVITY OUAZ-SH-124D,900 Signal Relay, SPDT, 24 VDC, 1 A, OUAZ Series, Through Hole
MASTER:
Electromechanical Relay 24VDC 1.28KOhm 1A SPDT15.4x10.4x11.2mm THT Miniature Sealed Relay
Online Components:
Electromechanical Relay 24VDC 1.28KOhm 1A SPDT 15.4mm 10.4mm 11.2mm THT Miniature Sealed Relay
Electro Sonic:
Electromechanical Relay 24VDC 1.28KOhm 1A SPDT 15.4mm 10.4mm 11.2mm THT Miniature Sealed Relay
额定电压DC 60 V
额定电压AC 120 V
功耗 450 mW
触点额定电流 1 A
线圈电压 24 VDC
线圈电流 18.8 mA
线圈电阻 1.28 kΩ
额定电流Max 1 A
线圈电压DC 24 V
额定功率Max 30W, 120VA
额定电压DC Max 60 V
额定电压AC Max 120 V
安装方式 Through Hole
引脚数 5
长度 15.4 mm
宽度 10.4 mm
高度 11.2 mm
触点材质 Silver Palladium, Gold
工作温度 -30℃ ~ 60℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490080
