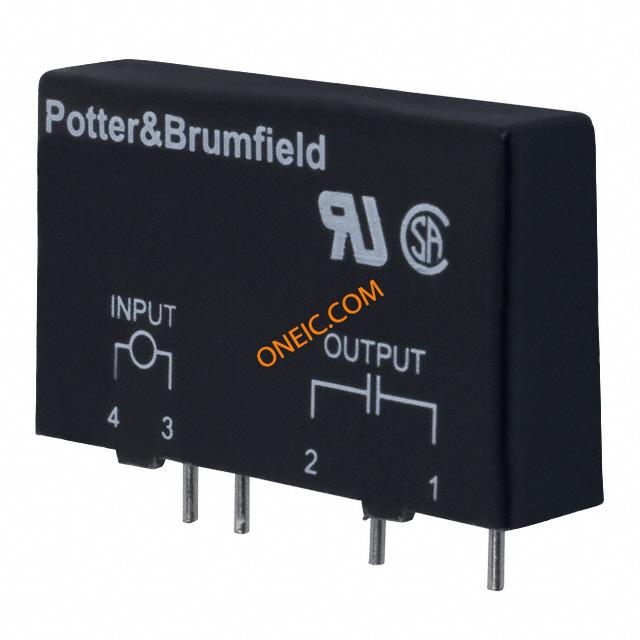

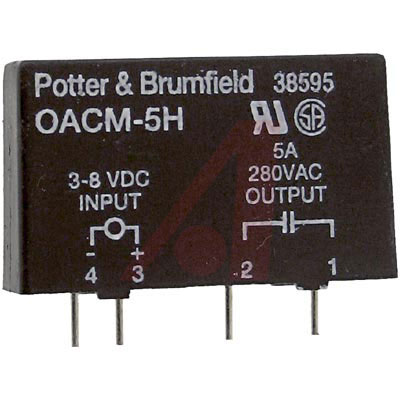

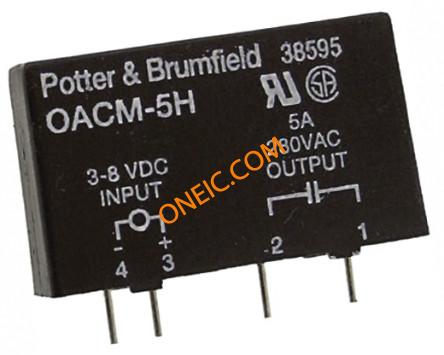

TE CONNECTIVITY / POTTER & BRUMFIELD OACM-5H 输入/输出模块, 5V, 5A, SPST-常开
Slim line input/output modules provide interfacing between microprocessor- or computer-based control systems and external input devices and loads such as switches, sensors, valves and motor starters. Offered in four photo-isolated versions — AC input, AC output, DC input, DC output. Units are color-coded and have high isolation and noise immunity. Packaged in a 0.4" enclosure for replacement without disturbing wiring. On modules of the same voltage, output is compatible with input of the input module. Ideal for series operation. 1 Form A SPST-NO.
电源电压DC 5.00 V, 3.00 V min
额定电压DC 280 V
工作电压 3.00V max
额定电流 5 A
输出接口数 1
输入电压DC 5.00 V
输出电压 5 VDC
输出电流 5 A
触点类型 SPST-NO
通道数 1
负载电流 5.00 A
输入电流 20 mA
隔离电压 4000 VAC
输入电压Max 8 VDC
输入电压Min 3 VDC
输出电压Max 280 V
输出电流Max 0.05 A
输入电流Min 20 mA
模拟输出数 1
负载电流Max 5 A
负载电流Min 24 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
电源电压 8 VDC
输入电压 5 VDC
安装方式 Through Hole
引脚数 5
封装 Black
长度 31.8 mm
宽度 15.2 mm
高度 25.4 mm
封装 Black
外壳颜色 Black
颜色 Black
工作温度 -30℃ ~ 80℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538908040
