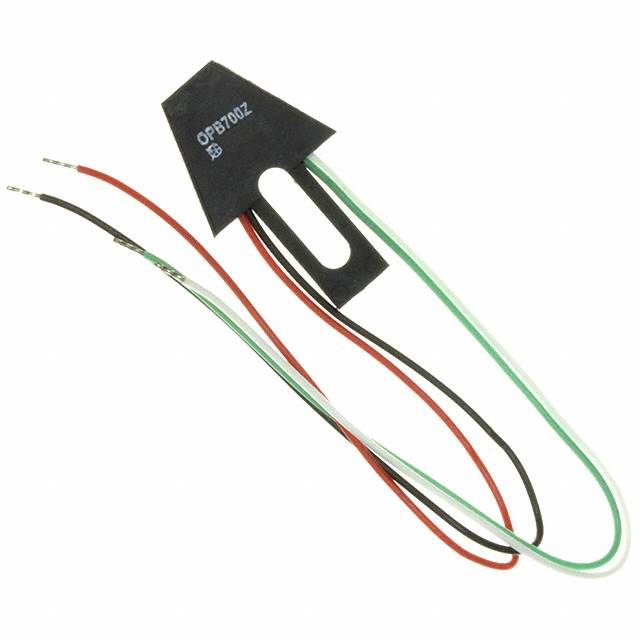

OPTEK TECHNOLOGY OPB700Z 光电开关, 反射型
The series Reflective Object Sensor that consist of an infrared emitting diode and a NPN silicon phototransistor, mounted side-by-side on converging optical axes in a black plastic housing. Sensor consist of an infrared emitting diode and a NPN silicon photodarlington, mounted side-by-side on converging optical axes in a black plastic housing. The interconnect wires for these devices are UL approved #26 AWG, with Teflon insulation, stripped and tinned.
- .
- Low profile to facilitate stacking
- .
- Plastic housing
- .
- Choice of phototransistor or photodarlington output
- .
- 26 AWG lead wire in 4" 101mm
额定电压DC 25.0 V
输出电压 25.0 V, 25.0 V max
通道数 1
正向电压 1.7 V
波长 890 nm
输入电流 50.0 mA
峰值波长 890 nm
耗散功率 80 mW
击穿电压集电极-发射极 24 V
正向电流 50 mA
击穿电压 2 V
正向电流Max 100 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 80 mW
电源电压 1.7 VDC
安装方式 Through Hole
引脚数 4
封装 Pre-Wired
长度 15.24 mm
宽度 2.54 mm
高度 25.4 mm
脚长度 102 mm
封装 Pre-Wired
材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial, Automation & Process Control, 传感与仪器, Sensing & Instrumentation, 自动化与过程控制, Safety, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPB700Z TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB700 TT Electronics/Optek Technology | 功能相似 | OPB700Z和OPB700的区别 |
