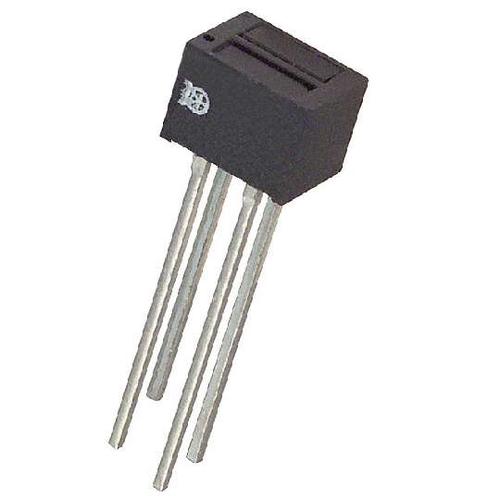

OPTEK TECHNOLOGY OPB706A 光电开关, 反射型
The is a Reflective Object Sensor consist of an infrared light emitting diode LED and an NPN silicon phototransistor mounted "side-by-side" on parallel axes in a black plastic housing. The LED and phototransistor is moulded using dark infrared transmissive plastic to reduce ambient light noise. The phototransistor responds to light from the emitter when a reflective object passes within its field of view of the device.
- .
- 935nm LED peak wavelength
- .
- 0.05" Reflection distance
- .
- Unfocused for sensing diffuse surface
- .
- 75mW Power dissipation
- .
- -40 to 85°C Operating temperature range
额定电压DC 30.0 V
输出电压 24.0 V
正向电压 1.7 V
波长 935 nm
输入电流 20.0 mA
峰值波长 935 nm
耗散功率 75 mW
击穿电压集电极-发射极 24 V
正向电流 20 mA
击穿电压 2 V
正向电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 75 mW
电源电压 1.7 V
安装方式 Through Hole
引脚数 4
封装 DIP-4
高度 4.70 mm
封装 DIP-4
材质 Plastic
工作温度 -40℃ ~ 85℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, 安全, Safety, Sensing & Instrumentation, 传感与仪器, 自动化与过程控制, Sensing & Instrumentation, Automation & Process Control, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPB706A TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB706C TT Electronics/Optek Technology | 完全替代 | OPB706A和OPB706C的区别 |
OPB706B TT Electronics/Optek Technology | 类似代替 | OPB706A和OPB706B的区别 |
