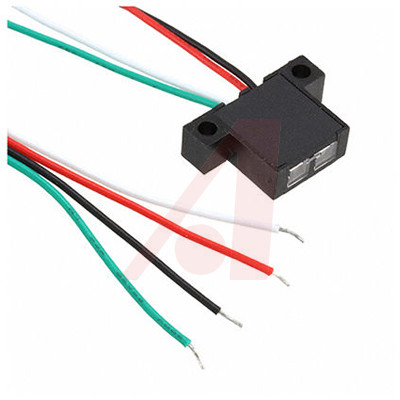

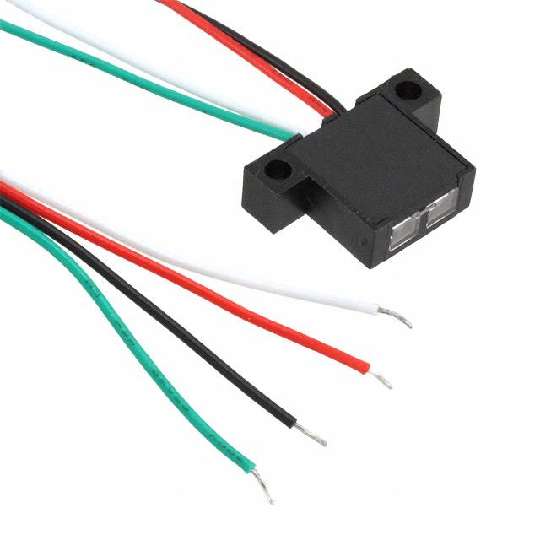

OPTEK TECHNOLOGY OPB732WZ 光电开关, 反射型
The is a long distance Reflective Switch uses an infrared LED and phototransistor in a reflective switch configuration. The assembly is offered with 26AWG wires and uses an opaque housing to reduce the sensor ambient light sensitivity. The emitter and sensor are protected by a clear window, providing a device that can operate in a dusty environment. The phototransistor can be configured as a common collector or common emitter device.
- .
- Non-contact infrared switch
- .
- -40 to 85°C Operating temperature range
输出电压 30.0 V
通道数 1
正向电压 1.8 V
波长 850 nm
输入电流 20.0 mA
峰值波长 850 nm
耗散功率 100 mW
击穿电压集电极-发射极 30 V
正向电流 50 mA
击穿电压 3 V
正向电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
电源电压 1.8 V
引脚数 4
封装 Pre-Wired
长度 19.81 mm
宽度 5.08 mm
高度 12.7 mm
封装 Pre-Wired
产品生命周期 Active
包装方式 Bulk
制造应用 自动化与过程控制, Security, Safety, Automation & Process Control, 传感与仪器, Sensing & Instrumentation, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPB732WZ TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB732W TT Electronics/Optek Technology | 功能相似 | OPB732WZ和OPB732W的区别 |
732
| 功能相似 | OPB732WZ和732的区别 |
