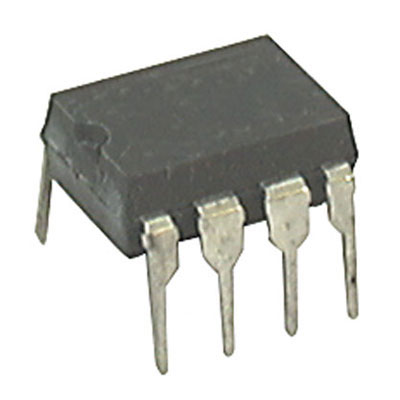

OP270GP图片2
OP270GP图片3

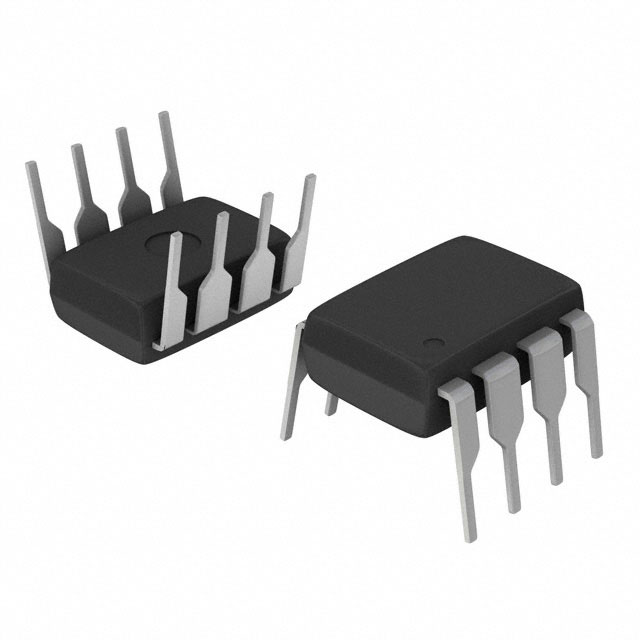

OP270GP图片4
OP270GP图片5
OP270GP图片6
OP270GP图片7
OP270GP图片8
OP270GP图片9
OP270GP图片10

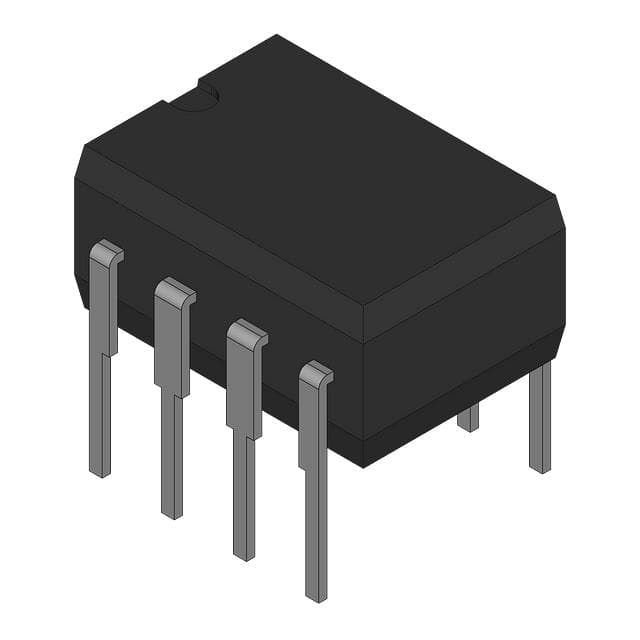

OP270GP图片11
OP270GP概述

DUAL非常低的噪声精密运算放大器 Dual Very Low Noise Precision Operational Amplifier

Product Details

The OP270 is a high performance, monolithic, dual operational amplifier with exceptionally low voltage noise density 5 nV/√Hz maximum at 1 kHz. It offers comparable performance to the industry-standard OP27 from Analog Devices, Inc.

The OP270 features an input offset voltage of less than 75 μV and an offset drift of less than 1 μV/°C, guaranteed over the full military temperature range. Open-loop gain of the OP270 is more than 1,500,000 into a 10 kΩ load, ensuring excellent gain accuracy and linearity, even in high gain applications. The input bias current is less than 20 nA, which reduces errors due to signal source resistance. With a common-mode rejection CMR of greater than 106 dB and a power supply rejection ratio PSRR of less than 3.2 μV/V, the OP270 significantly reduces errors due to ground noise and power supply fluctuations. The power consumption of the dual OP270 is one-third less than two OP27 devices, a significant advantage for power conscious applications. The OP270 is unity-gain stable with a gain bandwidth product of 5 MHz and a slew rate of 2.4 V/μs.

The OP270 offers excellent amplifier matching, which is important for applications such as multiple gain blocks, low noise instrumentation amplifiers, dual buffers, and low noise active filters.

The OP270 conforms to the industry-standard 8-lead CERDIP and PDIP pinouts.

For higher speed applications, the ADA4004-2 or the AD8676 are recommended. For a quad op amp, see the OP470 data sheet.

### Features and Benefits

.
Very low noise density of

5 nV/√Hz at 1 kHz maximum

.
Excellent input offset voltage of 75 μV maximum
.
Low offset voltage drift of

1 μV/°C maximum

.
Very high gain of 1500 V/mV minimum
.
Outstanding CMR of 106 dB minimum
.
Slew rate of 2.4 V/μs typical
.
Gain bandwidth product of

5 MHz typical

.
Industry-standard 8-lead dual pinout
OP270GP中文资料参数规格
技术参数

供电电流 4 mA

电路数 2

通道数 2

共模抑制比 110 dB

输入电容 3.00 pF

转换速率 2.40 V/μs

增益频宽积 5 MHz

输入阻抗 20.0 GΩ

输入补偿电压 50 µV

输入偏置电流 15 nA

工作温度Max 85 ℃

工作温度Min -40 ℃

增益带宽 5 MHz

共模抑制比Min 90 dB

电源电压Max 36 V

电源电压Min 9 V

封装参数

安装方式 Through Hole

引脚数 8

封装 PDIP-8

外形尺寸

宽度 6.35 mm

封装 PDIP-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

军工级 Yes

数据手册

OP270GP引脚图与封装图
OP270GP引脚图

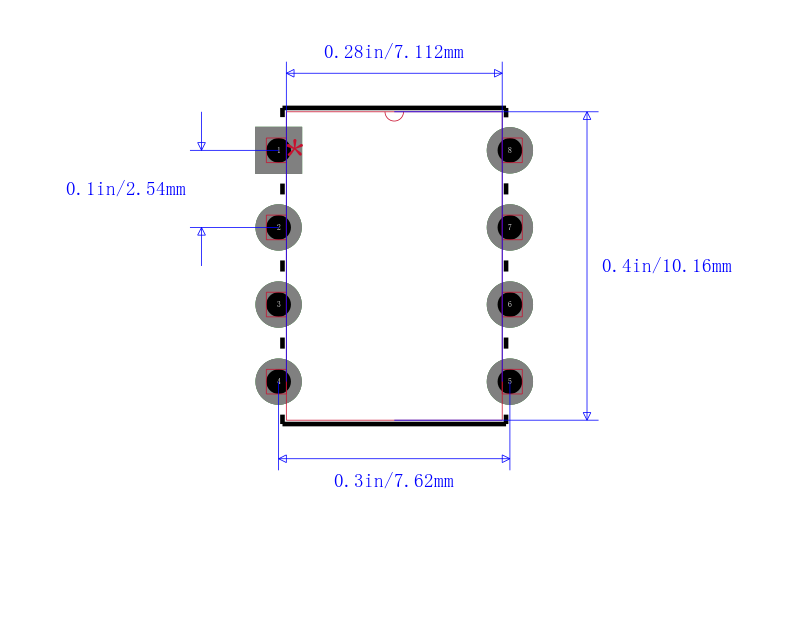

OP270GP封装图
OP270GP电路图

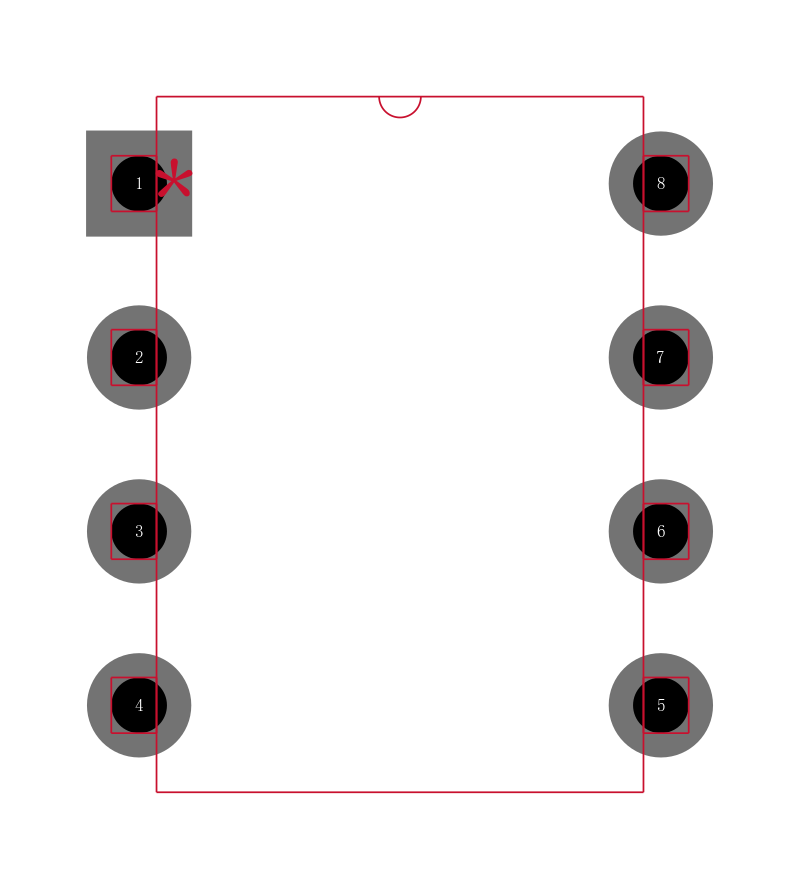

OP270GP封装焊盘图
