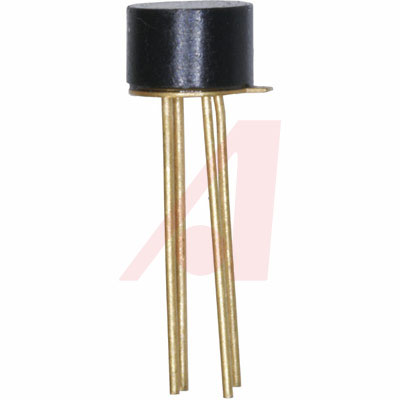

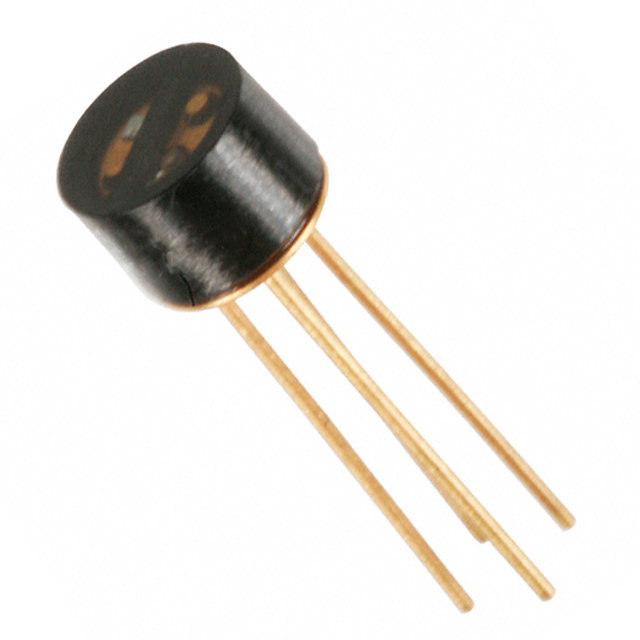

OPTEK TECHNOLOGY OPB710 光电开关, 反射型, TO-72
The is a Reflective Object Sensor that consists of a gallium arsenide infrared emitting diode and an NPN silicon phototransistor. On each sensor, the emitting diode and detector are mounted side-by-side on parallel axes. A black plastic sleeve is attached and filled with encapsulating epoxy to cover the emitter and detector. The package contains an internal barrier which prevents diode emissions from reaching the sensor directly.
- .
- Photodarlington output
- .
- Unfocused for sensing diffuse surface
- .
- Clear encapsulating epoxy
- .
- Filtered to reduce the effect of visible or fluorescent light
电源电压DC 5.00 V
额定电压DC 30.0 V
工作电压 5.00 V
输出电压 30.0 V
正向电压 1.5 V
波长 935 nm
输入电流 50.0 mA
峰值波长 935 nm
耗散功率 150 mW
击穿电压集电极-发射极 30 V
正向电流 50 mA
正向电流Max 50 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 150 mW
电源电压 1.5 V
安装方式 Through Hole
引脚数 2
封装 TO-72
封装 TO-72
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial, Automation & Process Control, 传感与仪器, Sensing & Instrumentation, 自动化与过程控制, Safety, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
