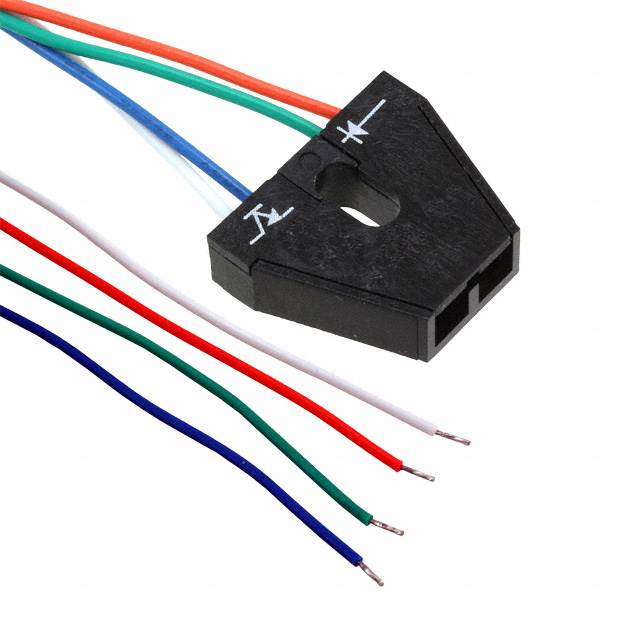

OPTEK TECHNOLOGY OPB743WZ 光电开关, 反射型
The is a Reflective Object Sensor consists of an infrared emitting diode and a NPN silicon phototransistor or a photodarlington. It is wired UL approved wire devices that offer various lens options, including no windows, blue polysulfone windows for dust protection or opaque aperture windows with offset openings for improved target resolution.
- .
- Focused for maximum sensitivity
- .
- Crosstalk does not exceed specified ICEO
- .
- 26AWG Wire size
- .
- -40 to 80°C Operating temperature range
输出电压 30.0 V, 30.0 V max
正向电压 1.7 V
波长 890 nm
输入电流 40.0 mA
峰值波长 890 nm
耗散功率 100 mW
击穿电压集电极-发射极 30 V
正向电流 40 mA
正向电流Max 40 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 4
封装 Pre-Wired
封装 Pre-Wired
工作温度 -40℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, 安全, Sensing & Instrumentation, Safety, 自动化与过程控制, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPB743WZ TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB743W TT Electronics/Optek Technology | 类似代替 | OPB743WZ和OPB743W的区别 |
