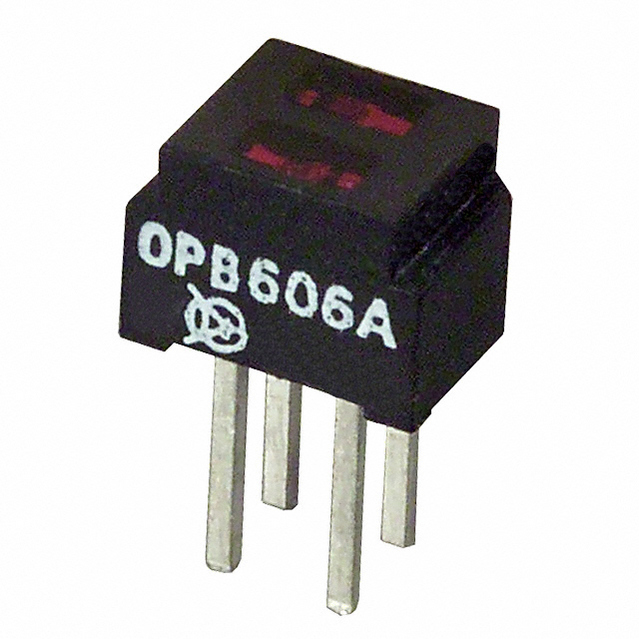

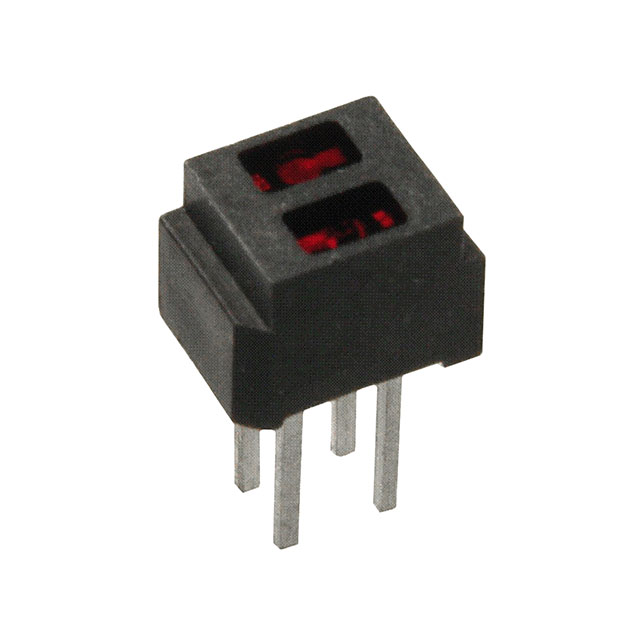

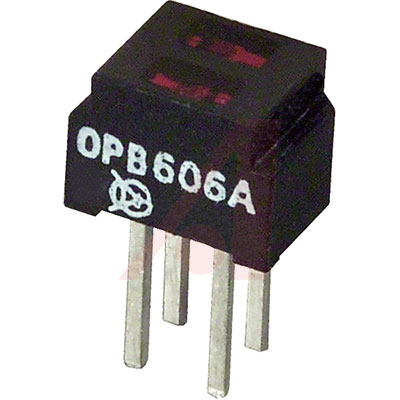

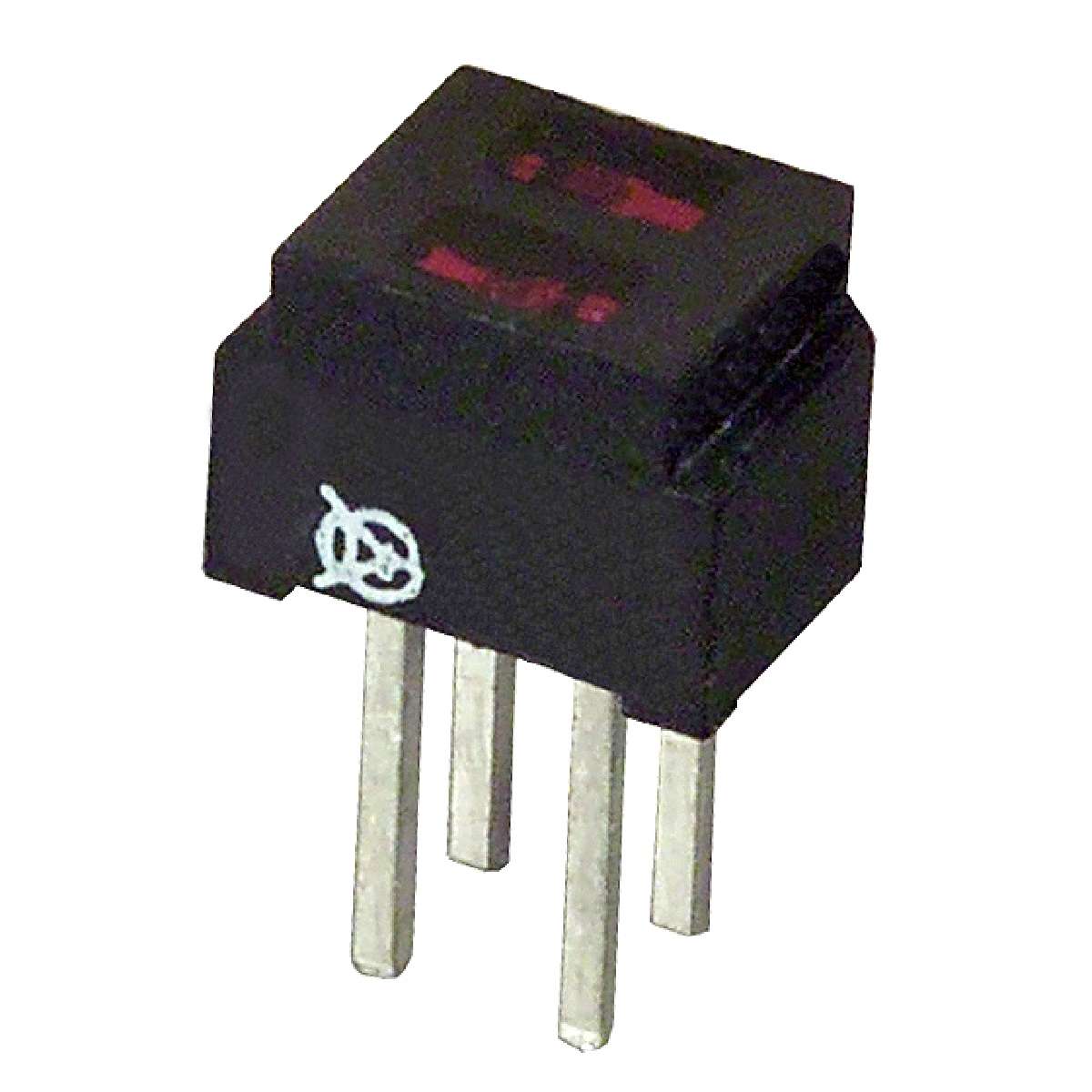

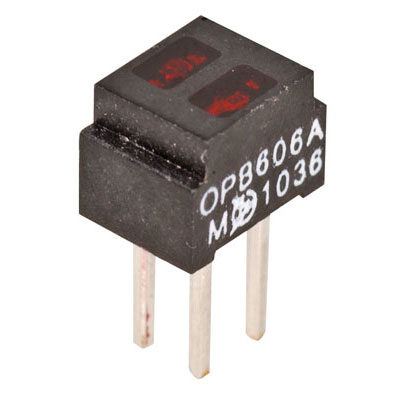

OPTEK TECHNOLOGY OPB606A 光电传感器, 反射型
The OPB607A series Object Sensor that consists of an infrared Light Emitting Diode LED and an NPN silicon photodarlington which are mounted "side-by-side" on parallel axes in a black plastic housing. The emitting diode and phototransistor of both the device is encapsulated in a filtering epoxy that reduces ambient light noise. On both models, the phototransistors respond to radiation from the emitter only when a reflective object passes within the field of view.
- .
- Choice of photodarlington output
- .
- Unfocused for sensing diffuse surface
- .
- Plastic housing
- .
- Filtered
输出电压 30.0 V
通道数 1
正向电压 1.7 V
波长 935 nm
输入电流 20.0 mA
峰值波长 935 nm
耗散功率 75 mW
击穿电压集电极-发射极 30 V
正向电流 50 mA
击穿电压 2 V
正向电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 75 mW
电源电压 1.7 V
安装方式 Through Hole
引脚数 4
封装 PDIP-4
长度 6.1 mm
宽度 4.39 mm
高度 4.5 mm
封装 PDIP-4
材质 Plastic
工作温度 -40℃ ~ 85℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Automation & Process Control, 安全, Industrial, Safety, Sensing & Instrumentation, 自动化与过程控制, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPB606A TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB606B TT Electronics/Optek Technology | 完全替代 | OPB606A和OPB606B的区别 |
OPB606C TT Electronics/Optek Technology | 完全替代 | OPB606A和OPB606C的区别 |
OPB607B TT Electronics/Optek Technology | 类似代替 | OPB606A和OPB607B的区别 |
