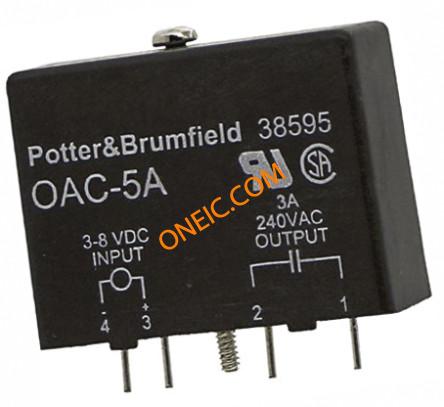

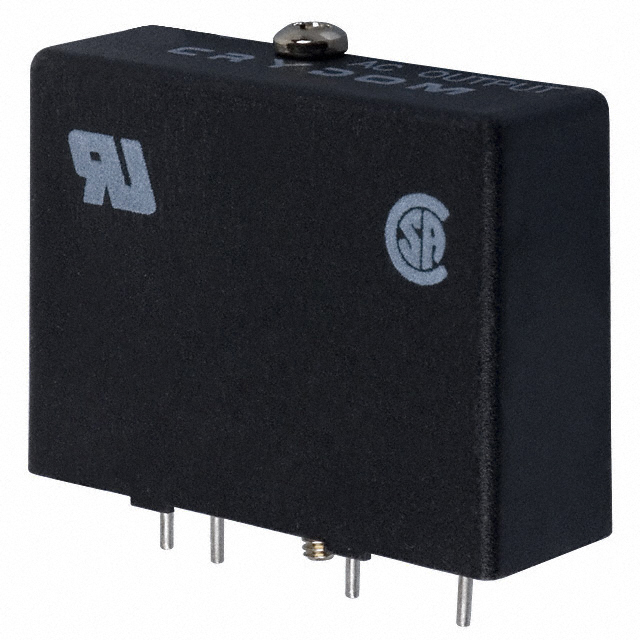

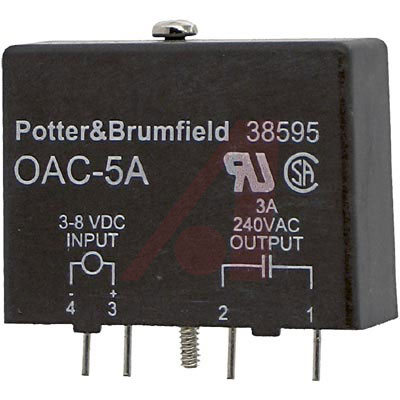

TE CONNECTIVITY / POTTER & BRUMFIELD OAC-5A 输入输出模块, 3 - 8VDC
A reliable interface between microprocessor- or computer-based control systems and external input devices and loads, these photo-isolated modules feature excellent isolation and transient immunity. On modules of the same voltage type, AC or DC, the output of the output modules is compatible with the input of the input modules, making them ideal for series operation. Modules are color-coded and packaged in industry standard plug-in enclosure. Units interchange easily without disturbing wiring. UL recognized, CSA certified. Order mounting boards separately below.
电源电压DC 5.00 V, 3.00 V min
额定电压DC 280 V
工作电压 3.00V max
额定电流 3 A
输出接口数 1
输入电压DC 5.00 V
输出电压 5 VDC
输出电流 3 A
触点类型 SPST-NO
通道数 1
负载电流 3.00 A
输入电流 20 mA
隔离电压 4000 VAC
输入电压Max 8 VDC
输入电压Min 3 VDC
输入电流Min 20 mA
模拟输出数 1
负载电流Max 3 A
工作温度Max 80 ℃
工作温度Min -30 ℃
电源电压 8 VDC
输入电压 5 VDC
安装方式 Through Hole
引脚数 5
封装 Black

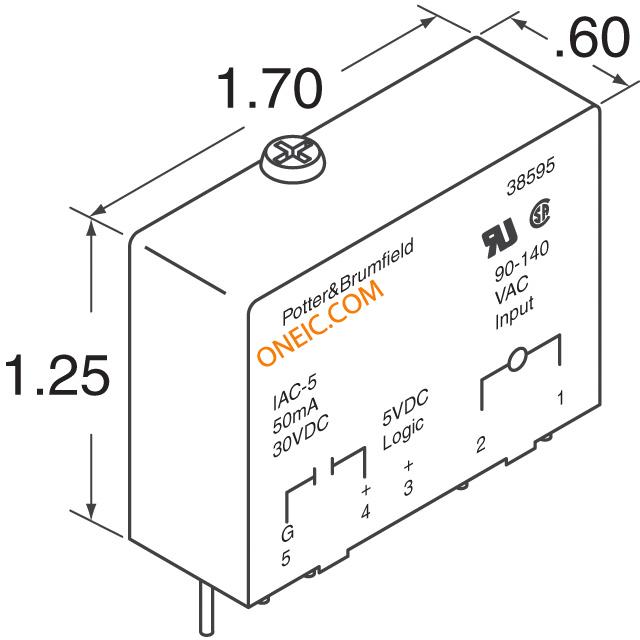

长度 43.2 mm
宽度 15.2 mm
高度 31.8 mm
封装 Black
外壳颜色 Black
颜色 Black
工作温度 -30℃ ~ 80℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538908040
