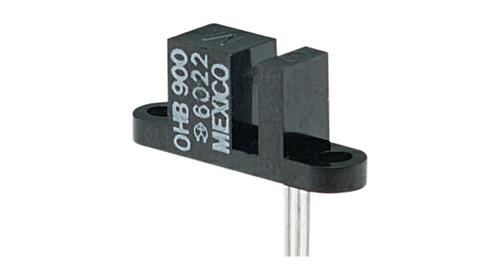

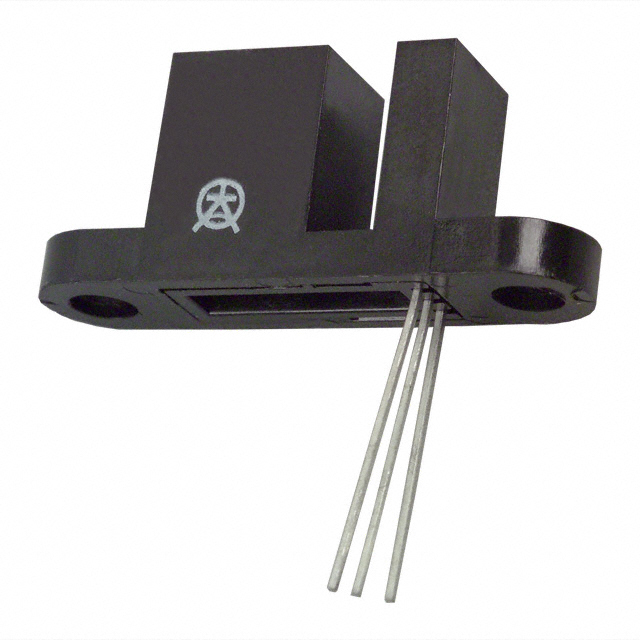

OHB900

OPTEK TECHNOLOGY  OHB900  光电开关, 凹槽型

* Hall element, linear amplifier and Schmitt trigger on a Hallogic® silicon chip

.

Non-contact motion sensing

.

May be used in high dust and dirt environments in preference to opto devices

.

Operates over a wide range of voltages

.

3.18mm wide gap, similar to optically slotted switches.

得捷:
SENSOR HALL DIGITAL PC PIN

立创商城:
霍尔效应传感器

贸泽:
板机接口霍耳效应/磁性传感器 HALL EFFECT SENSOR

e络盟:
光电开关, 凹槽型

艾睿:
Use this OHB900 Hall effect sensor from Optek Technology TT electronics for proximity switching, positioning, speed detection, and current sensing applications. This part can handle a current up to 25 mA. This device&s;s minimum operating supply voltage of 4.5 V, while its maximum is 25 V. This part has a minimum operating temperature of -40 °C and a maximum of 150 °C.

Allied Electronics:
Sensor; Magnetic; Hall-Effect; Unipolar; 25VDC; 3 PCB Pins; Screw; 25 mA Max

Chip1Stop:
Hall Effect Sensor 25mA Unipolar 5V/9V/12V/15V/18V/24V 3-Pin

Verical:
Hall Effect Sensor 25mA Unipolar 5V/9V/12V/15V/18V/24V 3-Pin Tube

Newark:
# OPTEK TECHNOLOGY  OHB900  HALL EFFECT IC
