OPTEK TECHNOLOGY OPB742 光电开关, 反射型

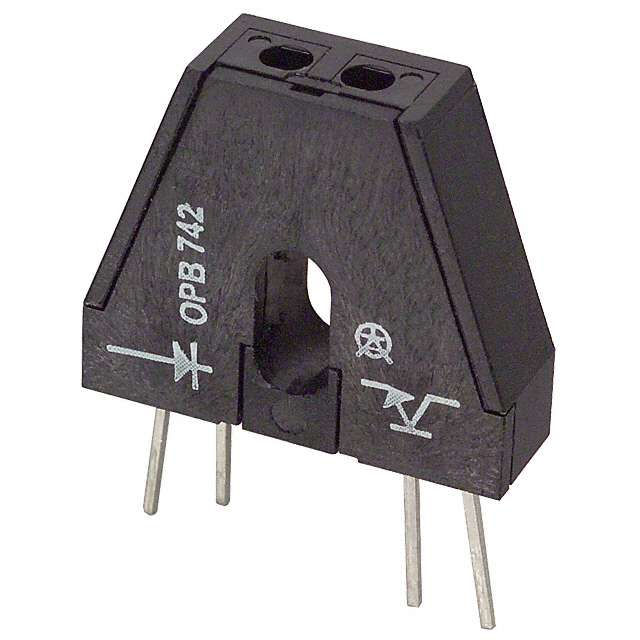

The is a Reflective Object Sensor consist of an infrared emitting diode and a NPN silicon phototransistor. This device is mounted side-by-side on converging optical axes in a black plastic housing focusing on a small area and depth of field. The photosensor responds to radiation only when a reflective object passes within its field of view. This through hole mounting sensor is suitable for non-contact reflective object sensor, assembly line and machine automation, machine safety, end of travel sensor, door sensor and thermal paper mark.
- .
- 890nm LED peak wavelength
- .
- 0.3" Reflection distance
- .
- Focused for maximum sensitivity
- .
- Crosstalk does not exceed specified ICEO
- .
- 100mW Power dissipation
- .
- -40 to 85°C Operating temperature range
额定电压DC 30.0 V
输出电压 30.0 V, 30.0 V max
通道数 1
正向电压 1.8 V
波长 890 nm
输入电流 40.0 mA
峰值波长 935 nm
耗散功率 100 mW
击穿电压集电极-发射极 30 V
正向电流 40 mA
正向电流Max 40 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
电源电压 1.7 V
安装方式 Through Hole
引脚数 4
封装 PCB Mount
长度 17.78 mm
宽度 5.08 mm
高度 15.24 mm
封装 PCB Mount
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, 安全, Sensing & Instrumentation, Safety, 自动化与过程控制, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPB742 TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB744 TT Electronics/Optek Technology | 类似代替 | OPB742和OPB744的区别 |
OPB743 TT Electronics/Optek Technology | 类似代替 | OPB742和OPB743的区别 |
OPB740 TT Electronics/Optek Technology | 类似代替 | OPB742和OPB740的区别 |
