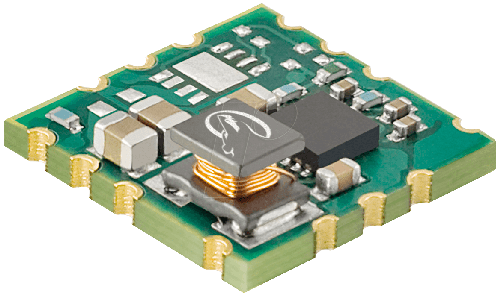

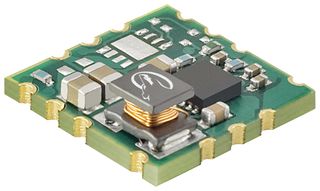

可编程输出1安培ILGA SMT政客 Programmable Output 1-Amp iLGA SMT PoLs
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 0.9 to 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
得捷:
DC DC CONVERTER 0.9-5V 5W
欧时:
DC/DC Non-Isolated 0.9-5.5V 1A
立创商城:
Programmable Output 1-Amp iLGA SMT PoLs
艾睿:
Provide the ability to switch between voltages by using this step down OKL-T/1-W12N-C DC to DC converter and switching regulator module. It has a voltage of 0.9 to 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
Chip1Stop:
Module DC-DC 1-OUT 0.9V to 5.5V 1A 5W 12-Pin Case C-83 T/R
Verical:
Module DC-DC 12VIN 1-OUT 0.9V to 5.5V 1A 5W 12-Pin Case C-83 T/R
Newark:
Isolated Board Mount DC/DC Converter, Okami, 1 Output, 5 W, 5.5 V, 1 A
额定功率 5 W
输出接口数 1
输出电压 0.9V ~ 5.5V
输出电流 1 A
输出功率 5 W
输入电压Max 14 V
输入电压Min 2.9 V
输入电压DC Max 14 V
输入电压DC Min 2.9 v
输出电流Max 1 A
输出功率Max 5 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.9V ~ 14V
安装方式 Surface Mount
引脚数 12
封装 BLGA-12
宽度 12.4 mm
高度 4.6 mm
封装 BLGA-12
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
