OPTEK TECHNOLOGY OPB620 透射光中断, 光晶体管, 通孔安装, 4.826 mm, 1.524 mm, 10 mA, 3 V

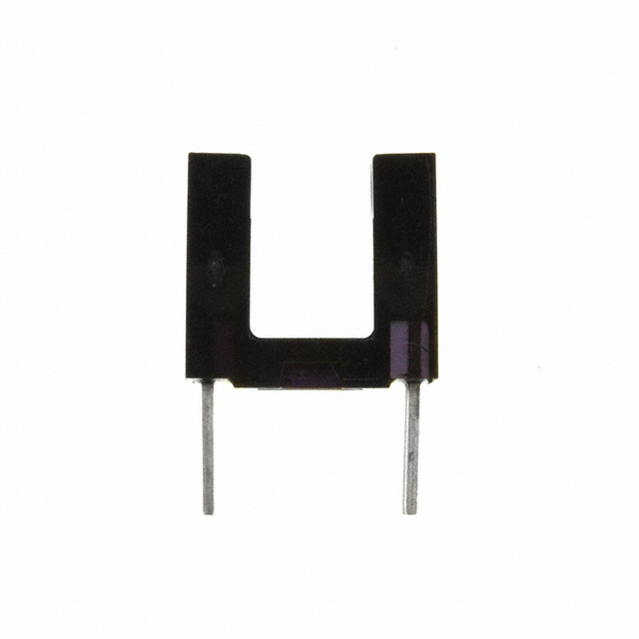

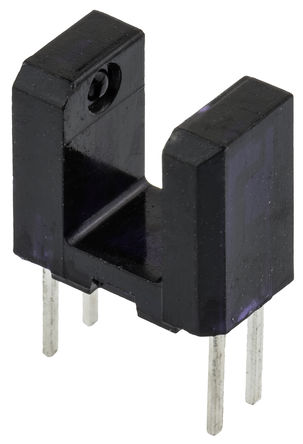

The is a Slotted Optical Switch with phototransistor and Rbe output. This printed circuit board mounting switch consist of an infrared emitting diode and an NPN silicon phototransistor with an enhanced low current roll-off to improve contrast ratio and immunity to background irradiance. Suitable for non-contact reflective object sensor, assembly line and machine automation, End of travel sensor, machine safety and door sensor.
- .
- Non-contact switching
- .
- Enhanced signal to noise ratio
- .
- 200mW Power dissipation
- .
- -40 to 100°C Operating temperature range
电源电压DC 1.60 V
额定电压DC 30.0 V
工作电压 1.60 V
输出电压 30.0 V
通道数 1
针脚数 4
正向电压 1.6 V
波长 890 nm
输入电流 10.0 mA
峰值波长 890 nm
耗散功率 200 mW
击穿电压集电极-发射极 24 V
正向电流 50 mA
击穿电压 3 V
正向电流Max 50 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 200 mW
电源电压 1.6 V
安装方式 Through Hole
引脚数 4
封装 PCB Mount
长度 10.16 mm
宽度 5.59 mm
高度 9.52 mm
封装 PCB Mount
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, 安全, Safety, Sensing & Instrumentation, 传感与仪器, 自动化与过程控制, Sensing & Instrumentation, Automation & Process Control, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 ECL99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPB620 TT Electronics/Optek Technology | 当前型号 | 当前型号 |
EE-SX1041 欧姆龙 | 功能相似 | OPB620和EE-SX1041的区别 |
GP1S58VJ000F 夏普 | 功能相似 | OPB620和GP1S58VJ000F的区别 |
GP1S58V 夏普 | 功能相似 | OPB620和GP1S58V的区别 |
