OPB810L51

OPB810L51图片1

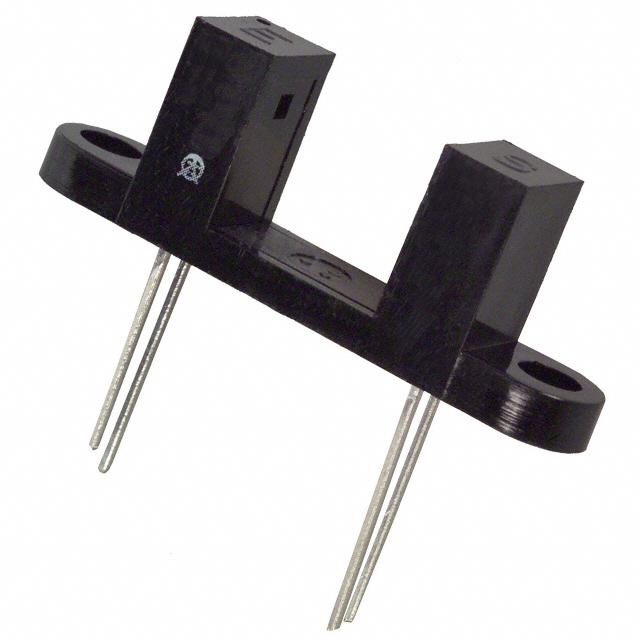

OPB810L51图片2
OPB810L51图片3
OPB810L51图片4
OPB810L51图片5
OPB810L51图片6
OPB810L51图片7
OPB810L51图片8

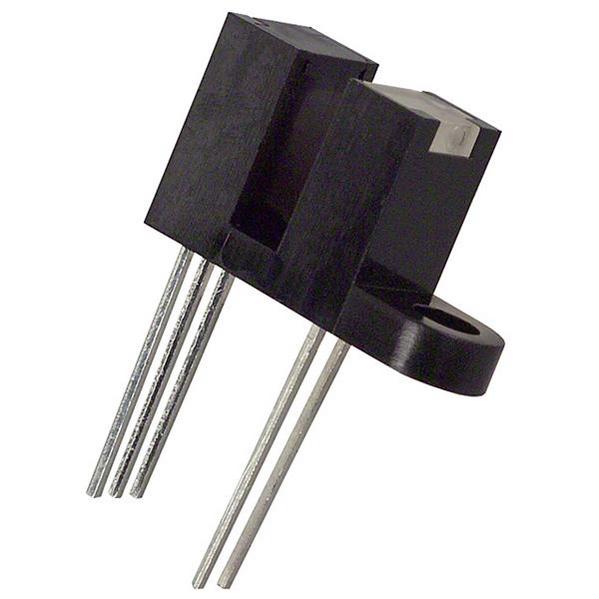

OPB810L51图片9
OPB810L51图片10
OPB810L51图片11
OPB810L51图片12
OPB810L51图片13
OPB810L51概述

9.5 mm 50 mA 1.7 Vf 槽型 光学开关

Optical Sensor Through-Beam 0.375" 9.53mm Phototransistor PCB Mount


得捷:
SENSOR OPT SLOT PHOTOTRAN PCB MT


贸泽:
光学开关(透射型,光电晶体管输出) .375" WIDE GAP 890NM


艾睿:
Photointerrupter Transmissive 9.53mm Phototransistor 4-Pin Bag


Jameco:
Photointerrupter Transmissive 2.03 mm Phototransistor 4-Pin Slotted Optical Switch


Chip1Stop:
Photointerrupter Transmissive 9.53mm Phototransistor 4-Pin


Verical:
Photointerrupter Transmissive 9.53mm Phototransistor 4-Pin Bag


Newark:
Transmissive Photo Interrupter, Phototransistor, Panel / Chassis, 9.5 mm, 1.27 mm, 50 mA, 2 V


OPB810L51中文资料参数规格
技术参数

电源电压DC 2.00 V

工作电压 2.00 V

输出电压 30.0 V

通道数 1

正向电压 1.7 V

波长 890 nm

输入电流 20.0 mA

峰值波长 890 nm

耗散功率 100 mW

击穿电压集电极-发射极 30 V

正向电流 50 mA

击穿电压 2 V

正向电流Max 50 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 100 mW

封装参数

安装方式 Through Hole

引脚数 4

封装 BULK

外形尺寸

长度 31.24 mm

宽度 6.6 mm

高度 11.05 mm

封装 BULK

物理参数

工作温度 -40℃ ~ 85℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

OPB810L51引脚图与封装图
OPB810L51引脚图
