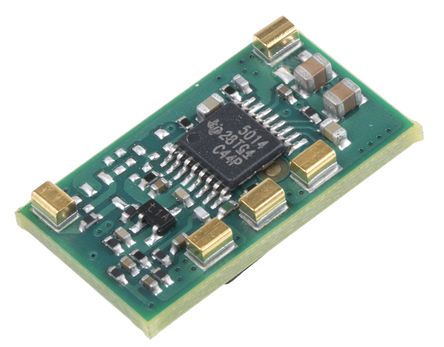

OKY-T/5-D12N-C

Murata 3A 和 15A 单输出调节非隔离直流到直流转换器 - OKY 系列非隔离 PoL 模块 宽输入电压范围 3A 和 5A 输出电流 可通过外部变压器调整输出电压 输出开/关抑制 输出电压感应 过温和过流保护 DOSA 表面安装封装 ### 注库存号 689-4707、689-4719、689-4725 和 689-4738 具有负开/关极性。 库存号 689-4716、689-4713 和 689-4729 具有正开/关极性。### 标准UL/EN/IEC 60950-1### Murata 电源解决方案 - 3A 至 16A 非隔离、载荷点直流/直流转换

The is a 25W surface-mount non-isolated PoL DC/DC Converter features outstanding thermal de-rating performance and wide range of input voltage from 8.3 to 14VDC. The module is fully compatible with Distributed-power Open Standards Alliance DOSA industry-standard specifications. Based on fixed frequency synchronous buck converter switching topology, the high power conversion efficient Point of Load POL module features programmable output voltage and ON/OFF control. This converter also includes under-voltage lock out UVLO, output short circuit protection, over-current and over-temperature protections.

.

Programmable output voltage from 0.7525 to 5.5VDC

.

Drives 1000µF ceramic capacitive loads

.

High power conversion efficiency 93% at 3.3Vout

.

Over-temperature and over current protection

.

ON/OFF control
