Analog Devices### 运算放大器,Analog Devices
OP07/27/37 精密运算放大器,Analog Devices
Analog Devices OP07、OP27 和 OP37 系列精密运算放大器具有非常低的输入失调电压、高开路增益和非常低的噪声。这些设备特别适用于需要高精度和高稳定性的高增益仪器仪表应用。
低失调电压通常无需外部调零
偏置电流抵消电路,适合较低的输入偏置和失调电流
出色的降噪性能,具有低 1/f 噪声转角频率
得捷:
IC OPAMP GP 1 CIRCUIT 8SOIC
欧时:

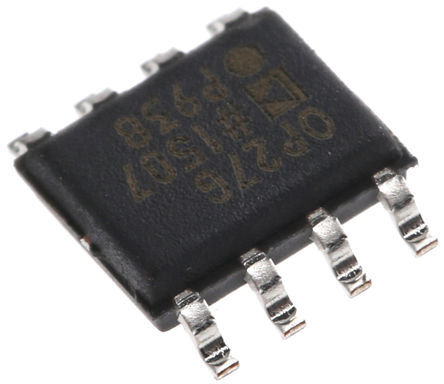

Analog Devices 运算放大器 OP27GSZ-REEL 精确, 8MHz增益带宽积, 8引脚 SOIC封装
立创商城:
OP27GSZ-REEL
艾睿:
The infinite open-loop gain, high input impedance and low output impedance of this general purpose amplifier OP27GSZ-REEL OP amp from Analog Devices produces a large amount of gain. Its typical dual supply voltage is ±5|±9|±12|±15|±18 V, with a minimum of ±4 V and maximum of ±22 V. This op amp has a temperature range of -40 °C to 85 °C. It has a single channel per chip. This device uses dual power supplies. This device utilizes bipolar technology.
安富利:
OP Amp Single GP ±22V 8-Pin SOIC N T/R
TME:
Operational amplifier; 8MHz; Channels:1; SO8
Verical:
Op Amp Single Low Noise Amplifier ±22V 8-Pin SOIC N T/R
力源芯城:
低噪声、精密运算放大器
Win Source:
IC OPAMP GP 8MHZ 8SOIC
供电电流 5.70 mA
电路数 1
通道数 1
耗散功率 100 mW
共模抑制比 100 dB
带宽 8 MHz
转换速率 2.80 V/μs
增益频宽积 8 MHz
输入阻抗 2.00 GΩ
输入补偿电压 30 µV
输入偏置电流 15 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 8 MHz
共模抑制比Min 100 dB
电源电压Max 22 V
安装方式 Surface Mount

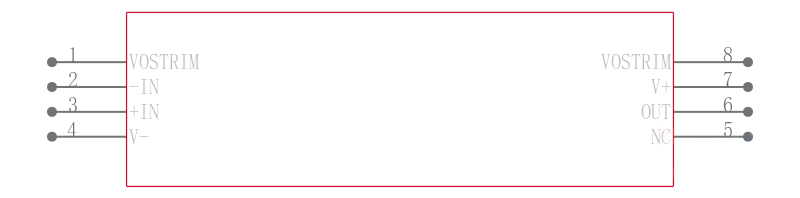

引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OP27GSZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
OP27GSZ 亚德诺 | 类似代替 | OP27GSZ-REEL和OP27GSZ的区别 |
OP27GSZ-REEL7 亚德诺 | 类似代替 | OP27GSZ-REEL和OP27GSZ-REEL7的区别 |
OP27GS-REEL7 亚德诺 | 类似代替 | OP27GSZ-REEL和OP27GS-REEL7的区别 |
