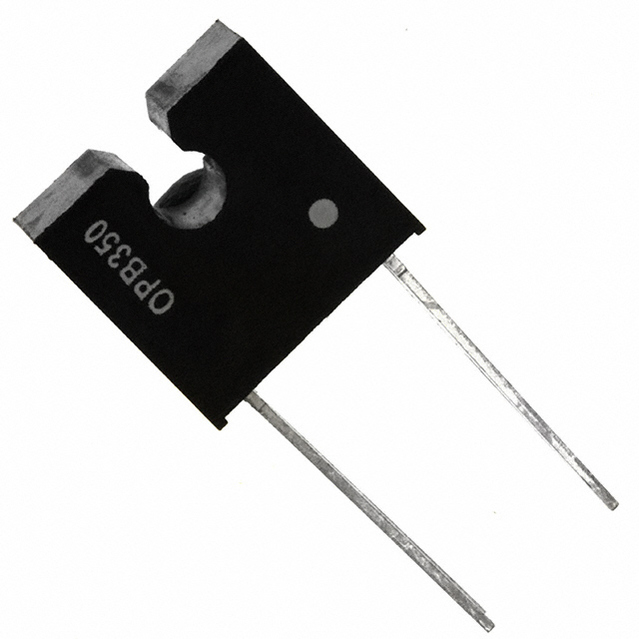

OPTEK TECHNOLOGY OPB350 流体传感器, 管径0.125英寸

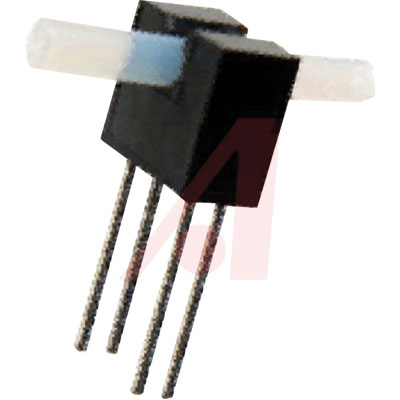

The is a tube Liquid Sensor is designed to work with 1/8-inch outside diameter clear tube. Clear liquid present causes the phototransistor to sink the maximum current, while dark liquid present causes it to sink the minimum current. The OCB350 series provides a full solution with automatic calibration capability and a pre-set trip level.
- .
- Opaque plastic housing enhances ambient light rejection
- .
- Printed circuit board mounting
- .
- -40 to 85°C Operating temperature range
电源电压DC 4.75V ~ 5.25V
额定电压DC 30.0 V
输出电流 50 mA
波长 890 nm
输入电流 50.0 mA
峰值波长 890 nm
耗散功率 100 mW
击穿电压集电极-发射极 30 V
正向电流 50 mA
击穿电压 2 V
正向电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 4
封装 BAG
引脚间距 8.13 mm
脚长度 8.38 mm
封装 BAG
引脚间距 8.13 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Sensing & Instrumentation, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
