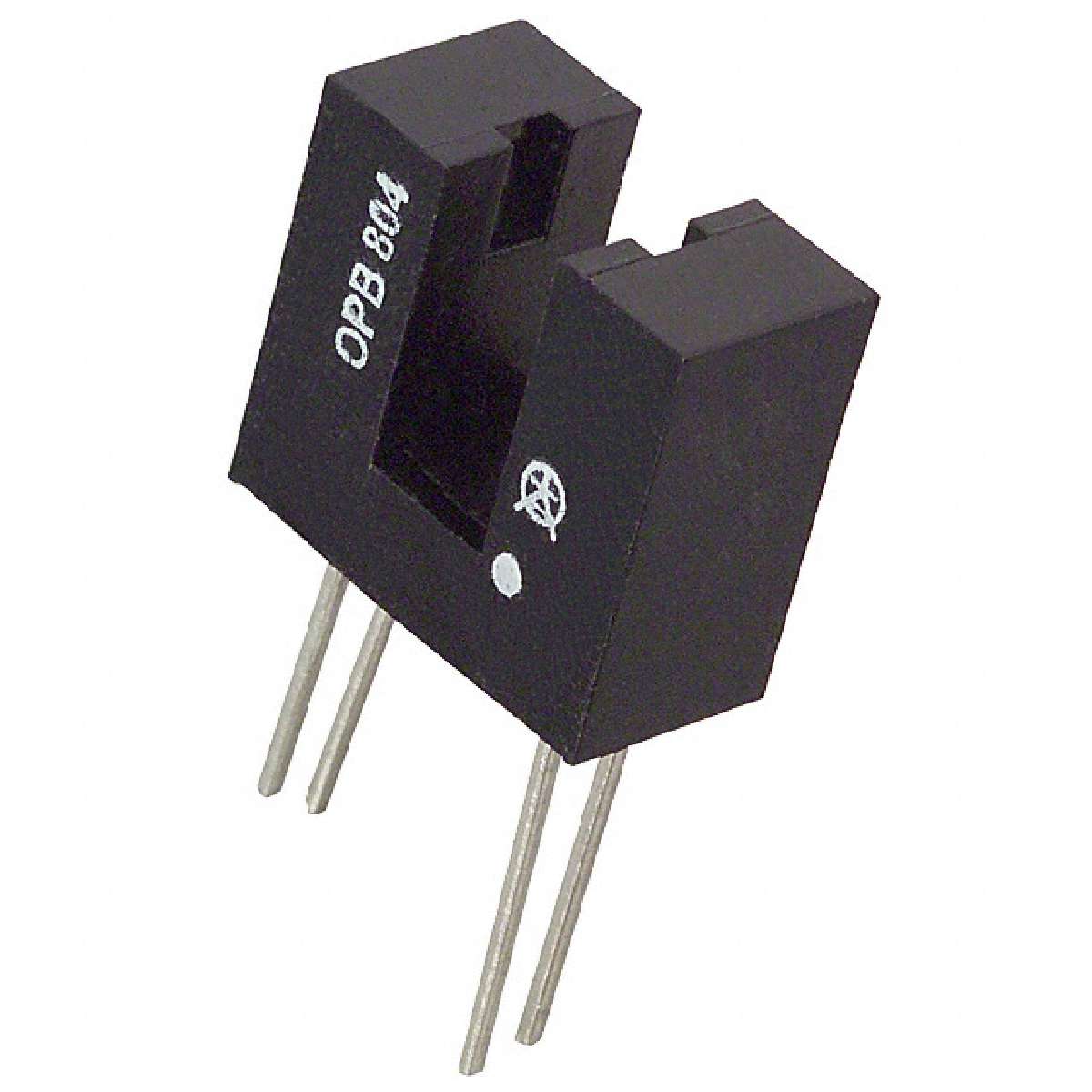

OPTEK TECHNOLOGY OPB804 光电开关
**Optek OPB800 & OPB810 Slotted Optical Switch**
Optek OPB800 & OPB810 series of slotted optical switches provide both PCB & 24 AWG remote mounting cable options. Optical switch housings are constructed from an opaque grade injection-molded plastic which eliminates ambient interference with detection. The OPB800 & OPB810 series offers various aperture sizes & photocurrent ratings to suit your application.
欧时:
Transmissive Slotted Optical Switch
得捷:
SENSOR OPT SLOT PHOTOTRAN PCB MT
贸泽:
光学开关(透射型,光电晶体管输出) .16in SLOT INFRARED
艾睿:
Photointerrupter Transmissive 3.9mm Phototransistor 4-Pin Bag
Allied Electronics:
Sensor; Transmissive; Slotted Optical Switch; 3.9mm Slot; 935nm; 100 mW; 30 mA
Chip1Stop:
Photointerrupter Transmissive 3.9mm Phototransistor 4-Pin
Verical:
Photointerrupter Transmissive 3.9mm Phototransistor 4-Pin Bag
Newark:
Transmissive Photo Interrupter, Phototransistor, Through Hole, 3.94 mm, 1.52 mm, 50 mA, 2 V
电源电压DC 1.60 V
额定电压DC 30.0 V
工作电压 1.60 V
输出电压 30.0 V
通道数 1
正向电压 1.25 V
波长 935 nm
输入电流 20 mA
峰值波长 935 nm
耗散功率 100 mW
击穿电压集电极-发射极 30 V
正向电流 50 mA
击穿电压 2 V
正向电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
电源电压 1.7 V
安装方式 Through Hole
引脚数 4
封装 BAG
封装 BAG
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPB804 TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB818 TT Electronics/Optek Technology | 类似代替 | OPB804和OPB818的区别 |
EE-SX1081 欧姆龙 | 功能相似 | OPB804和EE-SX1081的区别 |
