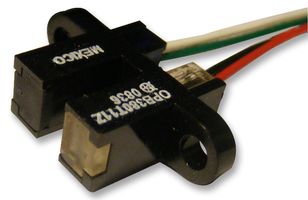

OPTEK TECHNOLOGY OPB380T11Z 透射光中断, 光晶体管, 通孔安装, 3.175 mm, 0.254 mm, 20 mA, 2 V
The OPB380 series Phototransistor Sensor that provides the flexibility of a custom device from a standard product line. Building from a standard housing with a wide slot, user can choose aperture width, opaque or IR transmissive housing shell material, PCBoard lead spacing or wires and mounting tab configuration. Housings are made from an opaque grade of injection-molded plastic to minimize sensitivity to both visible and near-infrared light. Discrete shells exposed on the parallel faces inside each device"s throat are made from either IR transmissive plastic for applications where dust protection is needed or from opaque plastic with aperture openings for applications that require maximum protection against ambient light. The series have 26 AWG, UL approved wires connected directly to the device for remote sensing applications.
输出电压 30 V
通道数 1
正向电压 1.3 V
波长 890 nm
输入电流 20 mA
峰值波长 890 nm
耗散功率 100 mW
击穿电压集电极-发射极 30 V
正向电流 20 mA
正向电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 4
封装 PCB Mount
长度 24.63 mm
宽度 6.35 mm
高度 15.25 mm
封装 PCB Mount
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial, Automation & Process Control, 传感与仪器, Sensing & Instrumentation, 自动化与过程控制, Safety, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPB380T11Z TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB380T51Z TT Electronics/Optek Technology | 类似代替 | OPB380T11Z和OPB380T51Z的区别 |
OPB380T11 TT Electronics/Optek Technology | 类似代替 | OPB380T11Z和OPB380T11的区别 |
OPB380T51 TT Electronics/Optek Technology | 类似代替 | OPB380T11Z和OPB380T51的区别 |
