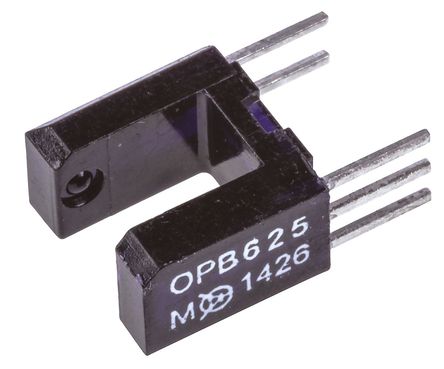

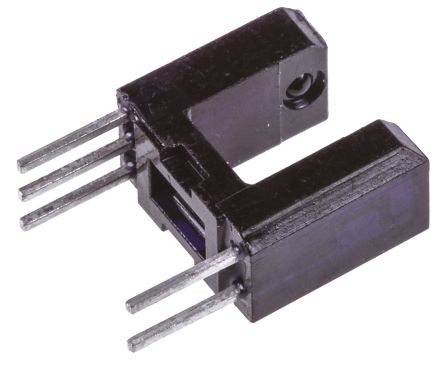

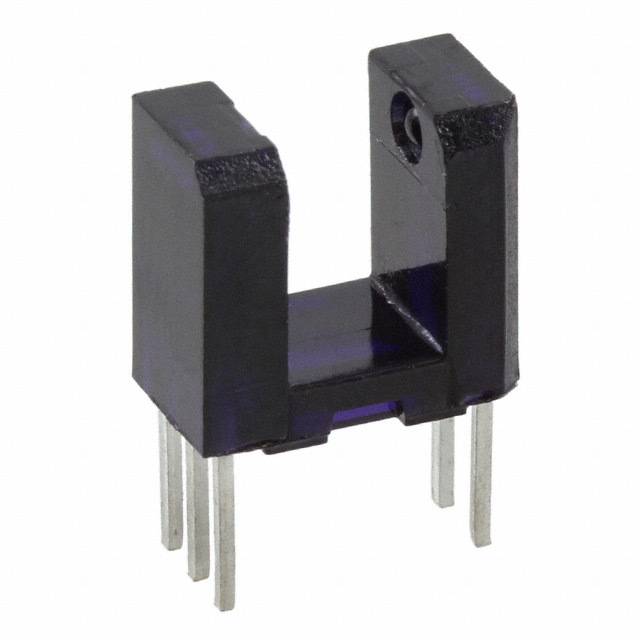

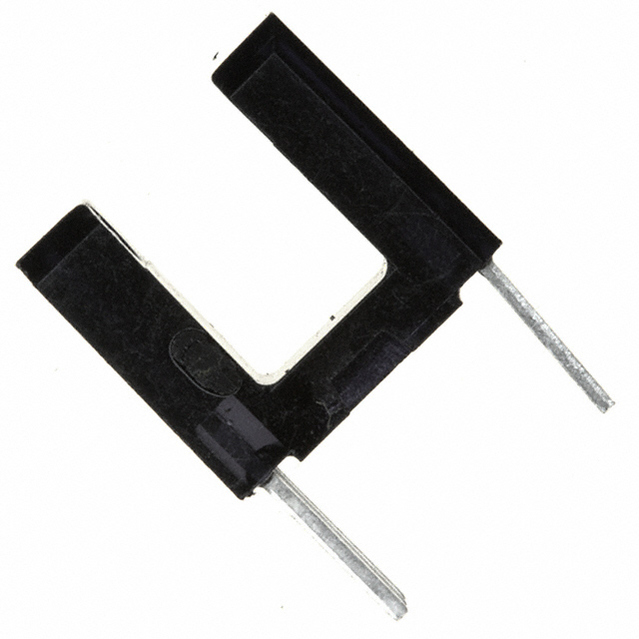

, OPB626, OPB627 and OPB628 Photologic Series Slotted Optical Switches
This series of Photologic® slotted optical switches, from Optek Technology, consist of an IR LED and a monolithic integrated circuit. This includes a photodiode, a linear amplifier and a Schmitt trigger on a single silicon chip.
These slotted optical switches feature a TTL/LSTTL compatible logic level output. They offer four output options.
Features of the slotted optical switches:
PCB mounted
Lead centers: 8.13 mm
Gap size: 4.83 mm
Enhanced signal to noise ratio
### 开槽光学开关，Optek Technology
电源电压DC 12.0 V, 16.0 V max
额定电压DC 18.0 V
额定电压AC 3.00 V
输出电压 1.60 V
输出电流 16.0 mA
供电电流 12 mA
通道数 1
针脚数 5
正向电压 1.6 V
波长 890 nm
输入电流 10.0 mA
峰值波长 890 nm
耗散功率 240 mW
上升时间 30 ns
正向电流 50 mA
击穿电压 3 V
正向电流Max 50 mA
下降时间 30 ns
下降时间Max 30 ns
上升时间Max 30 ns
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 240 mW
电源电压 4.5V ~ 16V
安装方式 Through Hole
引脚数 5
封装 PCB Mount
引脚间距 2.60 mm
长度 5.58 mm
宽度 10.16 mm
高度 9.52 mm
封装 PCB Mount
引脚间距 2.60 mm
工作温度 -40℃ ~ 100℃ TA
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPB625 TT Electronics/Optek Technology | 当前型号 | 当前型号 |
EE-SX498 欧姆龙 | 功能相似 | OPB625和EE-SX498的区别 |
OPB626 TT Electronics/Optek Technology | 功能相似 | OPB625和OPB626的区别 |
EESX498 欧姆龙 | 功能相似 | OPB625和EESX498的区别 |
