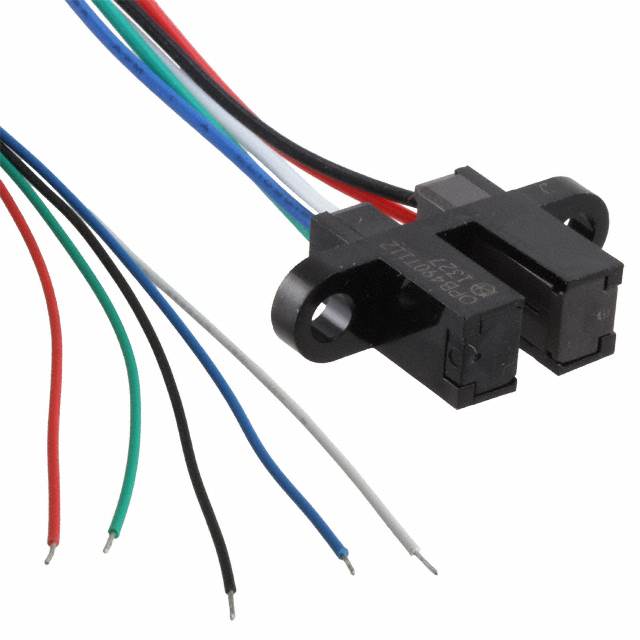

OPB490T11Z

OPTEK TECHNOLOGY  OPB490T11Z  光电开关, 槽型, 3.3MM, 带10KΩ上拉电阻

The OPB490 series of Photologic photo integrated circuit switches provide optimum flexibility for the design engineer. Building from a standard housing with a 0.125" 3.18mm wide slot, the user can specify 1 type and polarity of TTL output, 2 discrete shell material, 3 aperture width, and 4 type of mounting configuration. This device exhibit stable performance over supply voltages ranging from 4.5V to 16V and may be specified as buffered or converted with 10 k ohm pull-up or open collector output. TTL/LSTTL compatible and can drive up to 10 TTL loads.

**Features:**

* Choice of mounting configuration

* Choice of aperture

* Choice of output configuration

* Choice of opaque or IR transmissive shell material

* Data rates to 250 kBaud

* .320" 8.13mm lead spacing for PC board mount

* Low power consumption
