OPB741

OPB741图片1

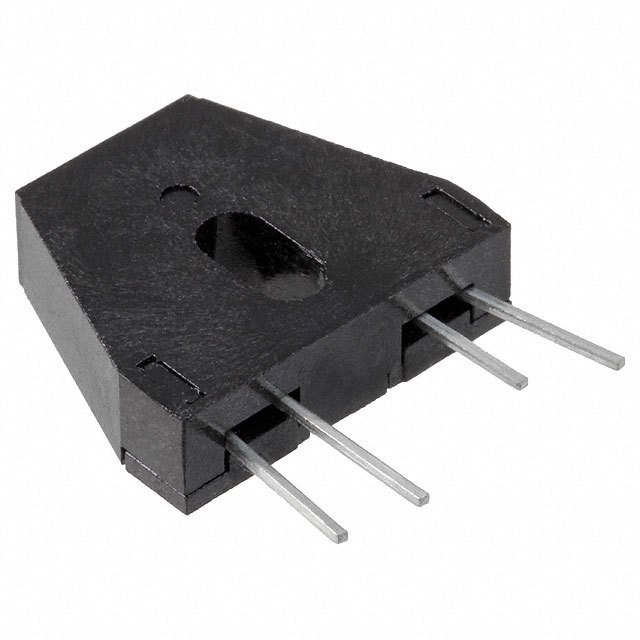

OPB741图片2
OPB741图片3

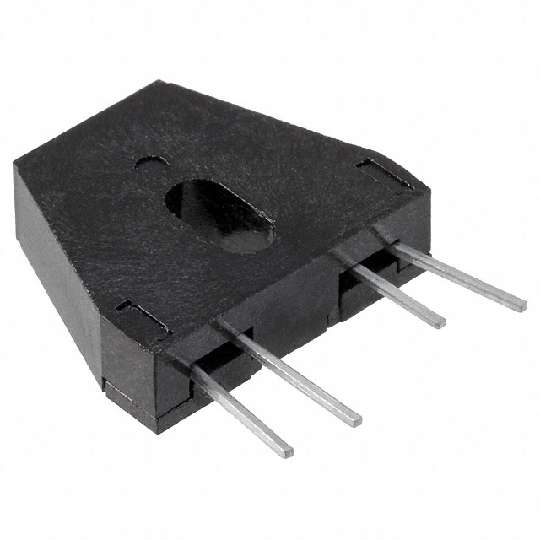

OPB741图片4
OPB741概述

Sensor, Reflective, Analog Output, 3.81mm, 30V, Through Hole, 40mA

Reflective Optical Sensor 0.150" 3.81mm PCB Mount


得捷:
SENSR OPTO TRANS 3.81MM REFL PCB


艾睿:
Photointerrupter Reflective Phototransistor 4-Pin


Allied Electronics:
Sensor, Reflective, Analog Output, 3.81mm, 30V, Through Hole, 40 mA


Chip1Stop:
Photointerrupter Reflective Phototransistor 4-Pin


OPB741中文资料参数规格
技术参数

工作电压 1.70 V

通道数 1

波长 890 nm

峰值波长 890 nm

耗散功率 100 mW

击穿电压集电极-发射极 30 V

正向电流 40 mA

正向电流Max 40 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 100 mW

封装参数

安装方式 Through Hole

引脚数 4

封装 PCB Mount

外形尺寸

宽度 5.08 mm

高度 15.24 mm

封装 PCB Mount

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买OPB741
型号: OPB741
描述:Sensor, Reflective, Analog Output, 3.81mm, 30V, Through Hole, 40mA
替代型号OPB741
型号/品牌 代替类型 替代型号对比

OPB741

TT Electronics/Optek Technology

当前型号

当前型号

OPB744

TT Electronics/Optek Technology

完全替代

OPB741和OPB744的区别

OPB743

TT Electronics/Optek Technology

完全替代

OPB741和OPB743的区别

OPB740

TT Electronics/Optek Technology

完全替代

OPB741和OPB740的区别
