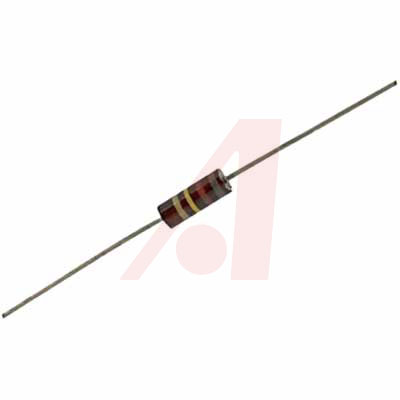

OF133JE

OF133JE图片1
OF133JE图片2
OF133JE图片3
OF133JE概述

碳化物电阻 13kΩ ±5% 500mW

"s Little Demons are small, reliable carbon composition resistors with exceptional strength. They are made tough by a molding process that combines the terminals, insulation and resistive element into an integrated unit. Along with their small size, Little Demons perform with low noise, dissipate heat rapidly and offer high temperature stability.

* Molded Insulation for High Dielectric Strength

* Rugged Construction

* High Surge Capabilities

* Comparable to “Mil” RC07, RC20 and RC32 Types

OF133JE中文资料参数规格
技术参数

额定功率 0.5 W

产品系列 OF

电阻 13 KΩ

阻值偏差 ±5 %

封装参数

封装 3.8 mm

外形尺寸

长度 10.3 mm

直径 Φ3.80mm

封装 3.8 mm

其他

包装方式 Bulk

最小包装 2500

符合标准

RoHS标准 RoHS Compliant

海关信息

ECCN代码 EAR99

HTS代码 8533100060

数据手册

在线购买OF133JE
型号: OF133JE
制造商: Ohmite
描述:碳化物电阻 13kΩ ±5% 500mW
