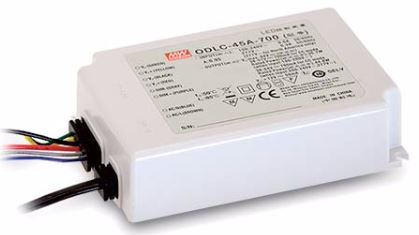

LED电源 44.8W 1400mA 19-32V CC Dimming Aux DCout
1.4A 19 ~ 32V Constant Current LED Driver AC DC Converter Topology 1 Output
得捷:
LED DRIVER CC AC/DC 19-32V 1.4A
贸泽:
LED电源 44.8W 1400mA 19-32V CC Dimming Aux DCout
艾睿:
AC/DC LED Power Supply 44.8W Single 8-Pin
TME:
Pwr sup.unit: switched-mode; LED; 45W; 19÷32VDC; 1.4A; 90÷295VAC
MASTER:
AC/DC LED Power Supply - Const Curr - 44.8W - Fixed:50 Vdc OC @ 1,400mA - Dim: 0-10 Vdc/PWM
Electro Sonic:
AC/DC LED Power Supply - Const Curr - 44.8W - Fixed:50 Vdc OC @ 1,400mA - Dim: 0-10 Vdc/PWM
CDI:
LED Driver CC 45W 1400mA Linear 19-32 90-295Vac PFC PWM, 0-10V Dimming Plastic Enclosure with Aux 12VDC output
额定功率 45 W
输出接口数 1
输出电压 19.0VDC ~ 32.0VDC
输出功率 44.8 W
隔离电压 3.75 kV
输入电压Max 295 VAC
输入电压Min 90 VAC
输出电流Max 1400 mA
输出功率Max 44 W
工作温度Max 85 ℃
工作温度Min -20 ℃
输入电压 127VDC ~ 417VDC, 90VAC ~ 295VAC
引脚数 8
长度 111 mm
宽度 77 mm
高度 28.5 mm
工作温度 -20℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
