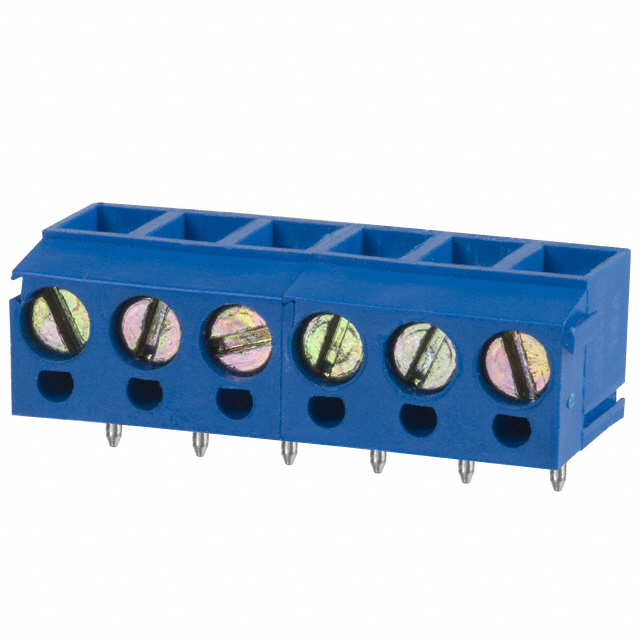

Terminal Block 5mm Hor 6POS Pcb
6 Position Wire to Board Terminal Block Vertical with Board 0.197" 5.00mm Through Hole
得捷:
TERM BLK 6POS TOP ENTRY 5MM PCB
艾睿:
Conn Terminal Block 6 POS 5mm Solder RA Thru-Hole 16A
Verical:
Conn Terminal Block 6 POS 5mm Solder RA Thru-Hole 16A
触点数 6
线规 14AWG ~ 22AWG
触点电镀 Copper Alloy, Zinc Alloy
排数 1
电路数 6
易燃性等级 UL 94 V-0
针脚数 6
额定电流Max 16 A
工作温度Max 105 ℃
工作温度Min -30 ℃
额定电压Max 250 VAC
工作电压Max 250 VAC
安装方式 Through Hole
引脚间距 5.00 mm
长度 30.0 mm
宽度 12.6 mm
高度 9 mm
引脚间距 5.00 mm
外壳颜色 Blue
颜色 Blue
触点材质 Brass, Steel
工作温度 -30℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
