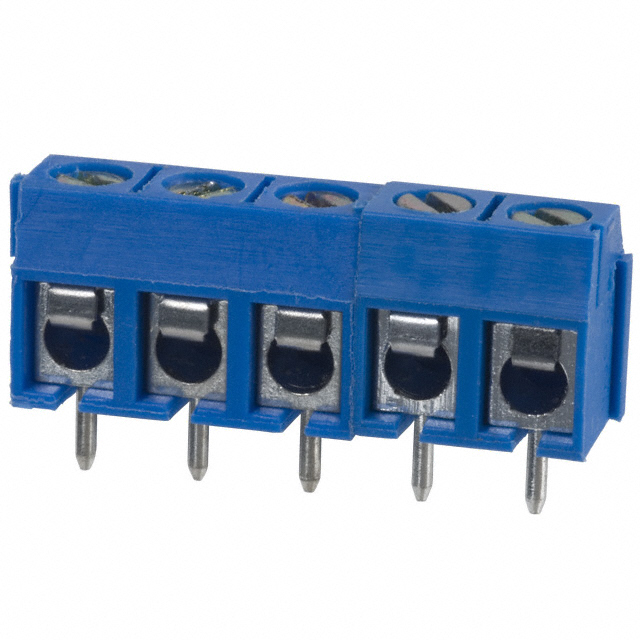

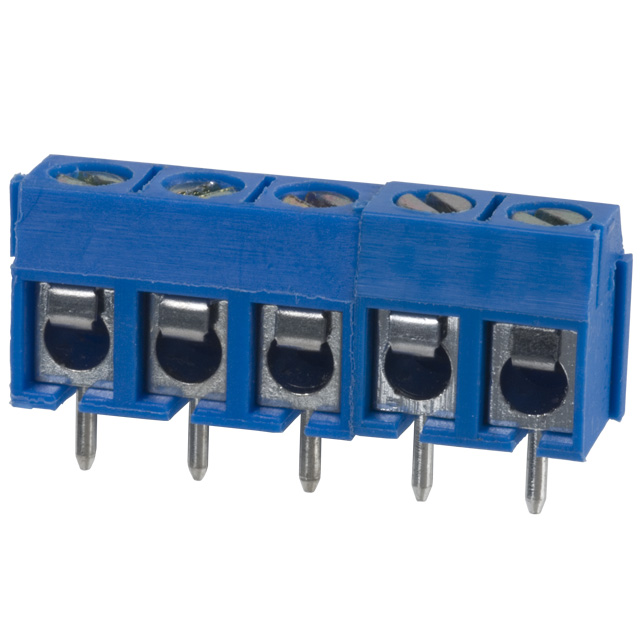

Conn Terminal Block 5POS 5.08mm Solder ST Thru-Hole 15A
5 接线板 - 线至板 水平,带板 0.200"(5.08mm) 通孔
得捷:
TERM BLK 5P SIDE ENT 5.08MM PCB
艾睿:
Conn Terminal Block 5 POS 5.08mm Solder ST Thru-Hole 15A
Verical:
Conn Terminal Block 5 POS 5.08mm Solder ST Thru-Hole 15A
触点数 5
线规 14AWG ~ 22AWG
触点电镀 Copper Alloy, Zinc Alloy
绝缘电阻 1000 MΩ
排数 1
电路数 5
易燃性等级 UL 94 V-0
针脚数 5
额定电流Max 15 A
工作温度Max 115 ℃
工作温度Min -40 ℃
额定电压Max 300 V
工作电压Max 300 V
安装方式 Through Hole
引脚间距 5.08 mm
长度 25.4 mm
宽度 7.60 mm
高度 10 mm
引脚间距 5.08 mm
外壳颜色 Blue
颜色 Blue
触点材质 Brass, Steel
工作温度 -30℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
