PESD5V2S2UT

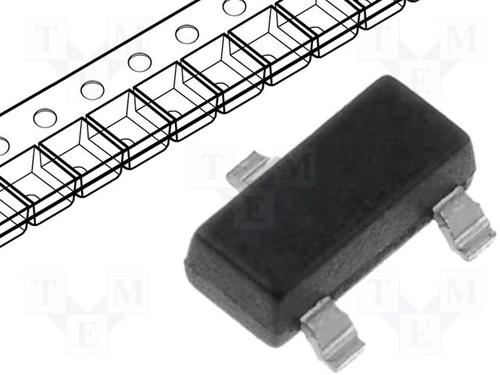

NXP  PESD5V2S2UT  静电保护装置, TVS, 20 V, SOT-23, 3 引脚

极性Polarization| 单向 Unidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 5V 反向击穿电压VBRBreakdown Voltage| 6.4V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 260W 峰值脉冲电流IPPmPeak Forward Surge Current| 15A 额定耗散功率PdPower dissipation| Description & Applications| Features • Double ESD protection diodes in SOT23 package • Uni-directional ESD protection of up to two lines • Max. peak pulse power: Ppp = 330 W at tp = 8/20 µs • Low clamping voltage: VCLR = 20 V at Ipp = 18 A • Ultra-low reverse leakage current: IRM < 700 nA • ESD protection > 23 kV • IEC 61000-4-2; level 4 ESD • IEC 61000-4-5 surge; Ipp = 18 A at tp = 8/20 µs 描述与应用| 特性 •双SOT23封装ESD保护二极管 •单向ESD保护可至双线 •最大峰值脉冲功率：Ppp=330 W@tp= 8/20μs •低钳位电压：V（CL）R =20 V Ipp=18Å •超低反向漏电流：IRM<700 nA •ESD保护>23千伏 •IEC61000-4-2第4级（ESD） •IEC61000-4-5（浪涌），Ipp=18 A@tp= 8/20μs
