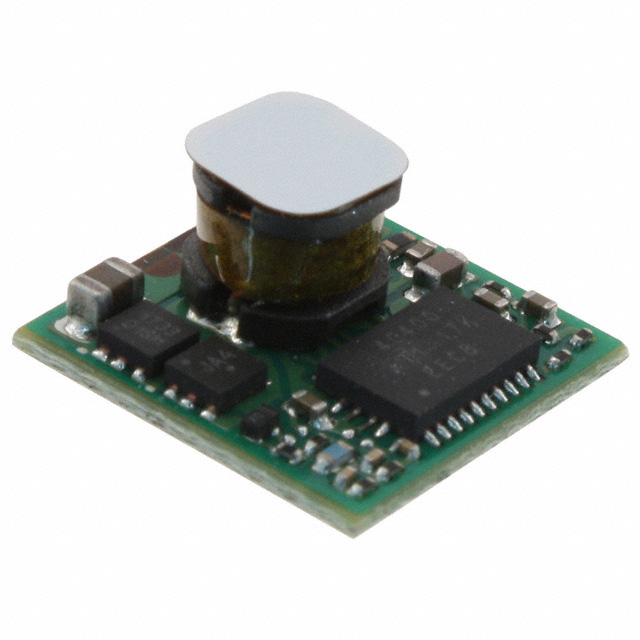

GE CRITICAL POWER PVX003A0X3-SRZ 非隔离负载点直流/直流转换器, 模拟Pico Dlynx, 可调, DOSA, 16.5 W, 600 mV, 5.5 V, 3 A
The is a Non-isolated DC to DC Power Module with programmable output voltage and wide input voltage range. The 3W/3A Analogue PicoDLynx™ power module is non-isolated DC/DC converter that provides precisely regulated output voltage from 0.6VDC to 5.5VDC, programmable via an external resistor. The Tunable Loop™ feature allows the user to optimize the dynamic response of the converter to match the load with reduced amount of output capacitance leading to savings on cost and PWB area.
- .
- Power good signal
- .
- Fixed switching frequency
- .
- Output over-current protection non-latching
- .
- Over-temperature protection
- .
- Remote on/off
- .
- Ability to sink and source current
- .
- -40 to +105°C Wide operating temperature range
额定功率 16.5 W
输出接口数 1
输出电压 0.6V ~ 5.5V
输出电流 3 A
输入电压Max 14.4 V
输入电压Min 3 V
输入电压DC Max 14.4 V
输入电压DC Min 3 v
输出电压Max 5.5 V
输出电压Min 600 mV
输出电流Max 3 A
输出功率Max 16.5 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 3V ~ 14.4V
安装方式 Surface Mount
引脚数 17
封装 SMD-17
宽度 12.2 mm
高度 6.3 mm
封装 SMD-17
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 通信与网络, Industrial, ITE（商业）, 电源管理, 工业, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
