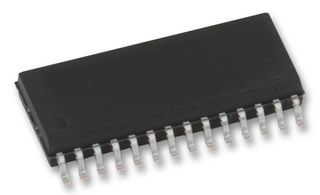

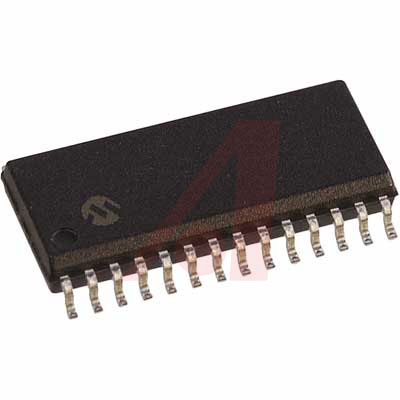

MICROCHIP PIC16C63A-04/SO 微控制器, 8位, 一次性可编程, PIC16C6xx, 4 MHz, 7 KB, 192 Byte, 28 引脚, SOIC
The is a PIC16 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program only 35 single word instructions CMOS one time programmable OTP based Microcontroller packs powerful PIC®RISC architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 192bytes of data memory size and 22 general-purpose I/O pins. This device operates at a maximum frequency of 4MHz with wide operating voltage of 2.5 to 6V.
频率 4 MHz
电源电压DC 5.00 V, 5.50 V max
工作电压 4V ~ 5.5V
针脚数 28
时钟频率 4.00 MHz
RAM大小 192 B
位数 8
耗散功率 1000 mW
FLASH内存容量 7 KB
I/O引脚数 22
存取时间 4.00 µs
内核架构 PIC
内存容量 192 B
内核子架构 PIC16
模数转换数ADC 1
输入/输出数 22 Input
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1000 mW
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4 V
安装方式 Surface Mount
引脚数 28

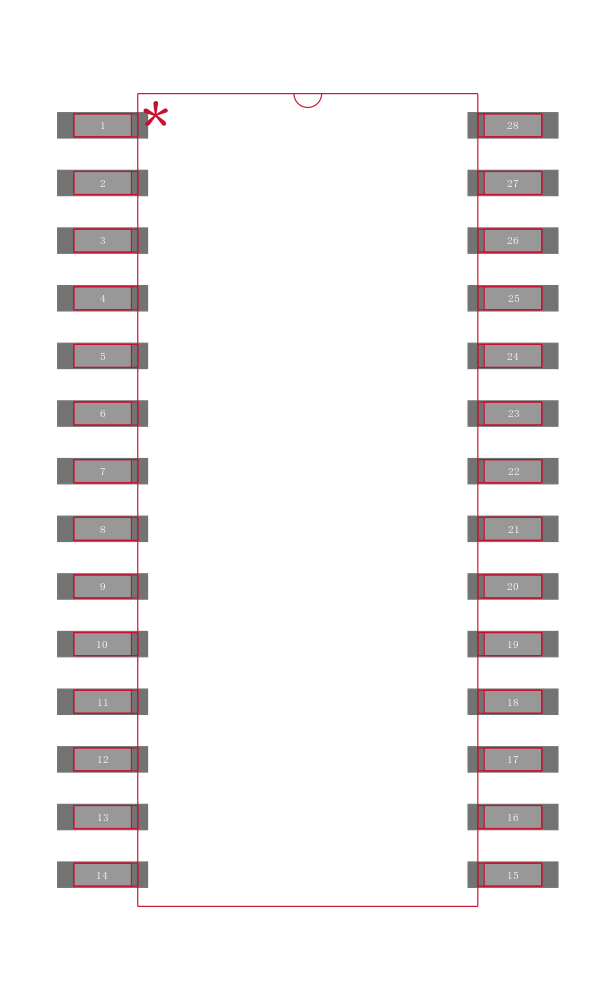

封装 SOIC-28
长度 17.87 mm
宽度 7.49 mm
高度 2.31 mm
封装 SOIC-28
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
制造应用 Industrial, Automotive, Consumer Electronics, , Automotive, 医用, 工业, 电机驱动与控制, Consumer Electronics, 车用, Security, Medical, 安全, Industrial, 照明, 消费电子产品, Lighting, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 3A991.a.2
HTS代码 8542310001
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC16C63A-04/SO Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F73-I/SO 微芯 | 类似代替 | PIC16C63A-04/SO和PIC16F73-I/SO的区别 |
PIC16C63A-20I/SO 微芯 | 类似代替 | PIC16C63A-04/SO和PIC16C63A-20I/SO的区别 |
PIC16F723A-I/SO 微芯 | 类似代替 | PIC16C63A-04/SO和PIC16F723A-I/SO的区别 |
