Keypad; 99.5mm L x 11.1mm Thickness; Panel Mount; 118.5mm; 24VDC Max.
1000 PLX Series Keypads, 118.50 in. Height, High Impact Polymer Case Material
keypads are groups of switches used to enter data into computers and controllers of electronic systems. They are designed and manufactured to resist damage by liquids, dust, vibration, and shock. Storm 1000 Series, PLX Series, and GFX Series are identical in size and mounting specifications, allowing easy price/performance selection for different environments. Available in 4, 12, and 16 key versions, each keypad is available in two legend formats. The 4 key version is available with either arrow or F1-F4 keys. The 12 and 16 key versions are available in telephone or calculator legend format. All keypads include instructions and a sealing gasket.
** Electrical Specifications. Connector:** 0.1" pitch, gold plated, square pin. ** Contact Bounce:** 5 ms max.. ** Contact Resistance:** 100 ohms max.. ** Insulation Resistance:** 50 megohms min.. ** Breakdown Voltage:** 500 VAC 60 secs.. ** Operating Voltage:** 24 VDC max.. ** Operating Current:** 50 mA max..
** Accessories
Blank Keys:- .
- * Set of four blank keys for custom engraving. ** Rear Casing:** Provides space to house additional components and circuitry 12 key format only.
** 1000 Series**
* Anti-Vandal Design Ideal for Public Environments
* Features Metal Casing and Keys
* Fully Sealed to IP67 for Outdoor Environments
* Case Color: Silver
* Key Color: Silver
* Operational Life: 4 Million Cycles Min. Per Key
* Operational Temp. Range: –40°C to 60°C
* Ideal for Outdoor Applications

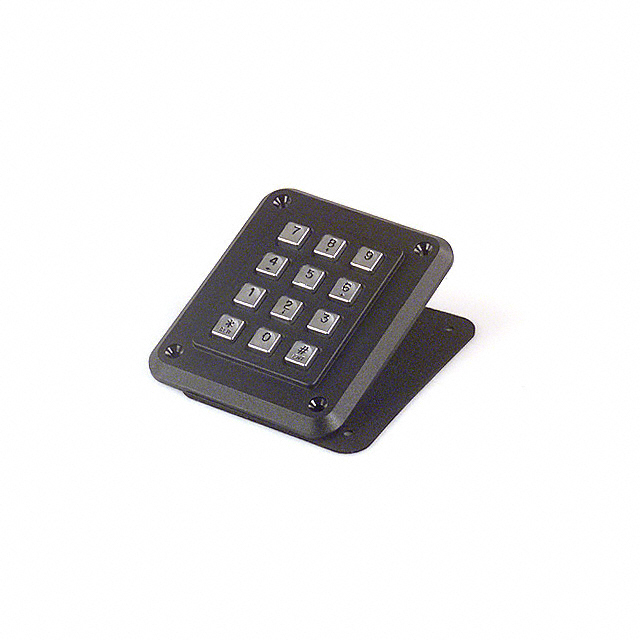

** PLX Series**
* Ideal for Public and Industrial Environments
* Tough Metal Key Keypad with Polymer Housing
* Sealed to IP65 for Exposed Environments
* Case Color: Black
* Key Color: Silver
* Operational Life: 4 Million Cycles Min. Per Key
* Operational Temp. Range: –40°C to 60°C
* Ideal for Manufacturing Applications
