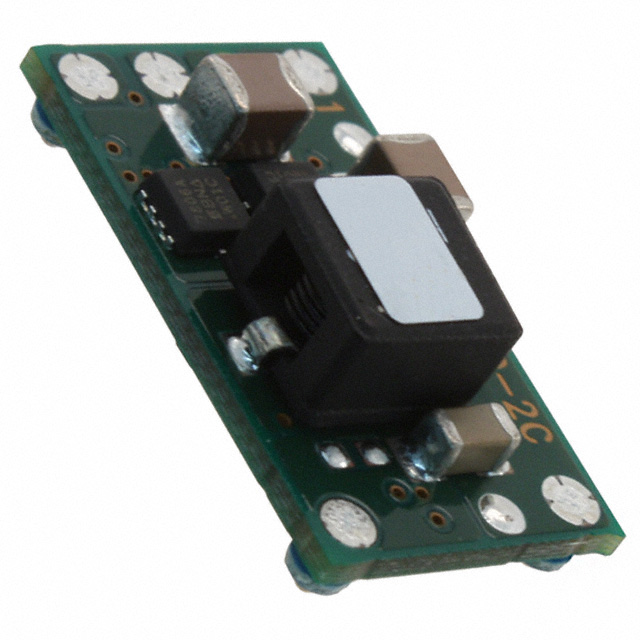

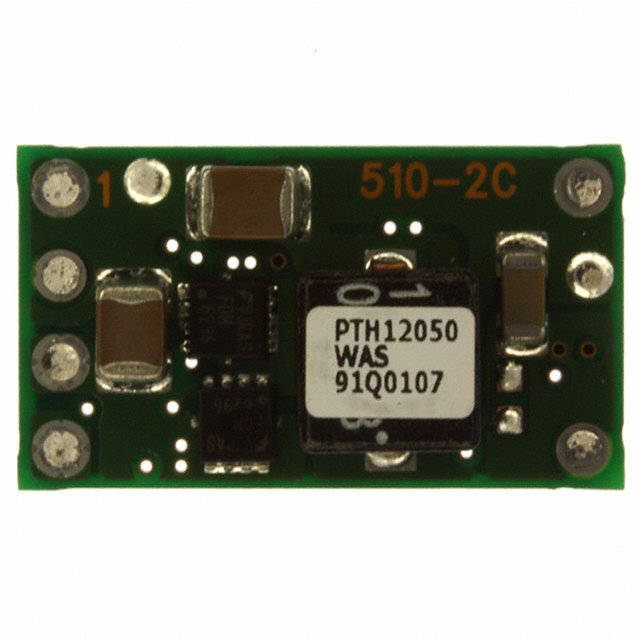

1.2 至 5.5V 6A 输出 12V 输入的非隔离宽调节模块 6-Surface Mount Module -40 to 85
The PTH12050 series is the smallest non-isolated power modules that features Auto-Track™ Sequencing. Auto-Track simplifies the sequencing of supply voltages in power systems by enabling modules to track each other, or any other external voltage, during power up and power down.
Although small in size 0.87 inches × 0.5 inches, these modules are rated for up to 6 A of output current, and are an ideal choice in applications where space, performance, and a power-up sequencing capability are important attributes.
The series operates from an input voltage of 12-V to provide step-down conversion to a wide range of output voltages. The output voltage of the W-suffix device may set to any voltage over the adjust range, 1.2 V to 5.5 V. The L-suffix device has an adjustment range of 0.8 V to 1.8 V. The output voltage is set within the adjustment range using a single external resistor.
Other operating features include an on/off inhibit, output voltage adjust trim, and output overcurrent protection. For high efficiency, these parts employ a synchronous rectifier output stage.
Target applications include telecom, industrial, and general purpose circuits, including low-power dual-voltage systems that use the TMS320™ DSP family, microprocessor, ASIC, or FPGA.
频率 320 kHz
电源电压DC 10.8V min
额定功率 33 W
输出接口数 1
输入电压DC 13.2 V
输出电压 1.2V ~ 5.5V
输出电流 6 A
调节输出数 1
开关频率 380 kHz
拓扑结构 Buck
输入电压Max 13.2 V
输入电压Min 10.8 V
输入电压DC Max 13.2 V
输入电压DC Min 10.8 v
输出电压Max 5.5 V
输出电压Min 1.2 V
输出电流Max 6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 10.8V ~ 13.2V

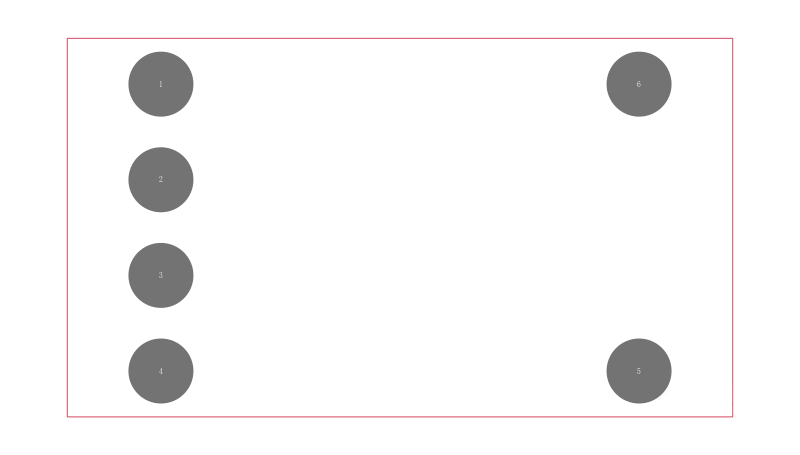

安装方式 Surface Mount
引脚数 6
封装 SMD-6
长度 22.1 mm
宽度 13.59 mm
高度 8.5 mm
封装 SMD-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PTH12050WAS TI 德州仪器 | 当前型号 | 当前型号 |
PTH12050WAZ 雅特生 | 完全替代 | PTH12050WAS和PTH12050WAZ的区别 |
PTH12050WAH 德州仪器 | 类似代替 | PTH12050WAS和PTH12050WAH的区别 |
