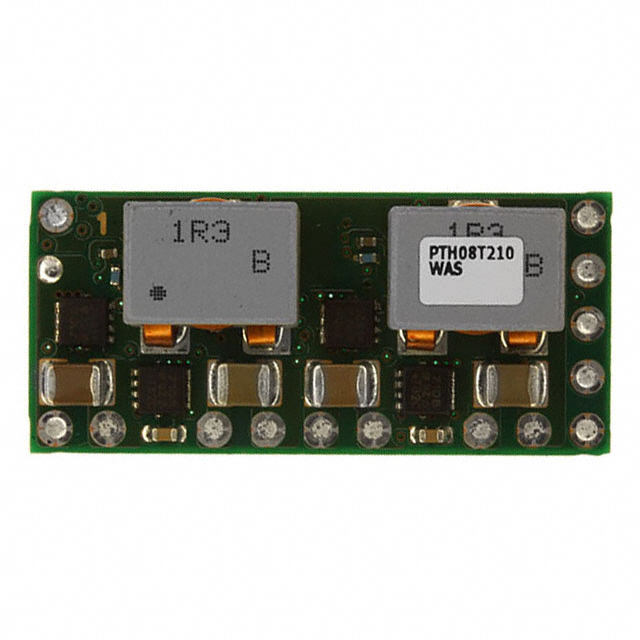

TEXAS INSTRUMENTS PTH08T210WAS 非隔离负载点直流/直流转换器, 可调, POLA, 108 W, 700 mV, 3.6 V, 30 A
The is a 1-output 108W surface-mount non-isolated adjust Power Module with TurboTrans™. The PTH08T210W is a high-performance 30A rated power module which utilizes a multi-phase, switch-mode topology. This module represents the 2nd generation of the PTH series power modules which include a reduced footprint and improved features. Operating from an input voltage range of 5.5 to 14V, the PTH08T210W requires a single resistor to set the output voltage to any value over the range, 0.7 to 3.6V. The wide input voltage range makes the PTH08T210W particularly suitable for advanced computing and server applications that uses a loosely regulated 8 to 12V intermediate distribution bus. The module uses double-sided surface mount construction to provide a low profile and compact footprint. A new feature included in this 2nd generation of PTH and PTV modules is TurboTrans technology patent pending.
电源电压DC 12.0 V
额定功率 90 W
输出接口数 1
输入电压DC 5.50V ~ 14.0V
输出电压 0.7V ~ 3.6V
输出电流 30 A
调节输出数 1
拓扑结构 Buck
输入电压Max 14 V
输入电压Min 5.5 V
输入电压DC Max 14 V
输入电压DC Min 5.5 v
输出电压Max 3.6 V
输出电压Min 700 mV
输出电流Max 25 A
输出功率Max 108 W
额定功率Max 90 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 5.5V ~ 14V
安装方式 Surface Mount
引脚数 14
封装 SMD-14
长度 34.8 mm
宽度 15.75 mm
高度 8.5 mm
封装 SMD-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PTH08T210WAS TI 德州仪器 | 当前型号 | 当前型号 |
PTH08T210WAZ 德州仪器 | 完全替代 | PTH08T210WAS和PTH08T210WAZ的区别 |
PTH08T210WAD 德州仪器 | 类似代替 | PTH08T210WAS和PTH08T210WAD的区别 |
PTH08T210WAZT 德州仪器 | 类似代替 | PTH08T210WAS和PTH08T210WAZT的区别 |
