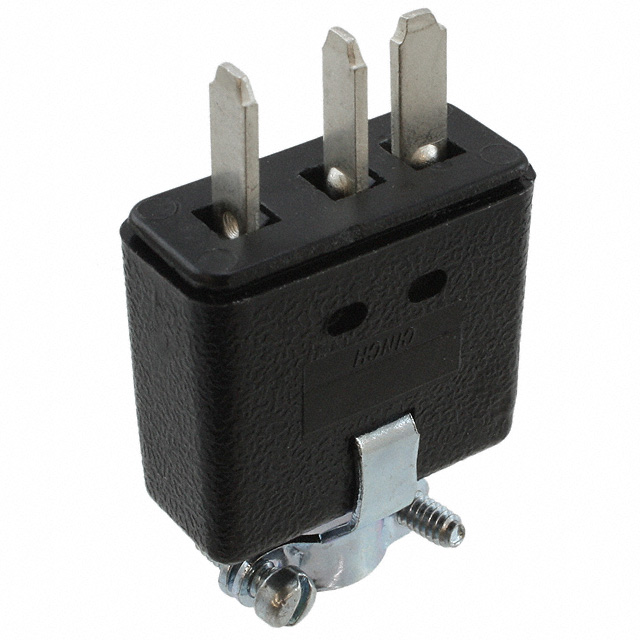

CINCH P-303H-CCT 工业连接器
**300 Series Plugs**
Cinch Connectivity 300 Series Jones Plugs are designed to provide a quick, reliable and economical means of solving high current-carrying capacity needs. The Jones connectors have flat blade contacts with solder lug terminals, and are polarized to prevent wrong-way insertion.
得捷:
CONN PLUG 3POS IN-LINE SLDR
e络盟:
工业连接器
艾睿:
Conn Power 3 POS Solder Lug ST Cable Mount
Allied Electronics:
CONNECTOR, JONES PLUG W/CABLE CLAMP TOP, SOLDER EYELETS, POLARIZED, 3 CONTACT
Newark:
# CINCH P-303H-CCT Rectangular Power Connector, 300 Series, Solder, Plug, 3 Contacts, Pin
MASTER:
Conn Wire to Wire PL 3 POS Solder Lug ST Cable Mount
Online Components:
Conn Wire to Wire PL 3 POS Solder Lug ST Cable Mount
Electro Sonic:
Conn Wire to Wire PL 3 POS Solder Lug ST Cable Mount
触点数 3
极性 Male
触点电镀 Cadmium
额定电流 10 A
排数 1
针脚数 3
额定电流Max 10 A
额定电压Max 250 VAC
额定电压 250 V
接触电阻Max 16 mΩ
安装方式 Solder
宽度 1.034 in
厚度 0.472 in
颜色 Black
触点材质 Brass
工作温度 0℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8442300150
