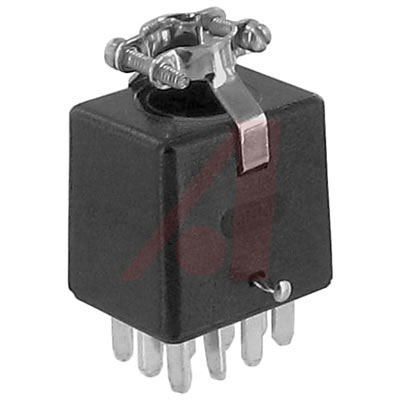

CINCH P-312-CCT 插接连接器, 公, 12路
300 Series Plugs, 10 A Current Rating, 250 VAC RMS Max. Voltage Rating, Brass Contact Material
* Designed for light and medium duty
* Polarized to prevent wrong-way insertion
The contact plating material is cadmium.
得捷:
CONN PLUG 12POS IN-LINE SLDR
贸泽:
Jones 插头和插槽 12C CBL MNT PLUG
e络盟:
插接连接器, 公, 12路
艾睿:
Conn Wire to Wire PL 12 POS Solder Lug ST Cable Mount
Allied Electronics:
connector, jones plug with cable clamp top, solder eyelets, polarized, 12 contact
Newark:
# CINCH P-312-CCT Rectangular Power Connector, 300 Series, Solder, Plug, 12 Contacts, Pin
MASTER:
Conn Wire to Wire PL 12 POS Solder Lug ST Cable Mount
Online Components:
Conn Wire to Wire PL 12 POS Solder Lug ST Cable Mount
Electro Sonic:
Conn Wire to Wire PL 12 POS Solder Lug ST Cable Mount
触点数 12
极性 Male
触点电镀 Cadmium
额定电压DC 250 V
额定电流 10 A
排数 3
针脚数 12
额定电流Max 10 A
工作温度Max 105 ℃
额定电压Max 250 VAC
额定电压 250 V
接触电阻Max 16 mΩ
安装方式 Solder
引脚间距 3.96 mm
长度 32.7 mm
宽度 1.286 in
高度 29.72 mm
直径 14.3 mm
引脚间距 3.96 mm
厚度 0.974 in
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 105 ℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8536694050
