Overview

The P82B96 is a bipolar IC that creates a non-latching, bidirectional, logic interface between the normal IC-bus and a range of other bus configurations. It can interface IC-bus logic signals to similar buses having different voltage and current levels.

For example, it can interface to the 350 A SMBus, to 3.3 V logic devices, and to 15 V levels and/or low-impedance lines to improve noise immunity on longer bus lengths.

It achieves this interface without any restrictions on the normal IC-bus protocols or clock speed. The IC adds minimal loading to the IC-bus node, and loadings of the new bus or remote IC-bus nodes are not transmitted or transformed to the local node. Restrictions on the number of IC-bus devices in a system, or the physical separation between them, are virtually eliminated. Transmitting SDA and SCL signals via balanced transmission lines twisted pairs or with galvanic isolation opto-coupling is simple because separate directional Tx and Rx signals are provided. The Tx and Rx signals may be directly connected, without causing latching, to provide an alternative bidirectional signal line with IC-bus properties.

MoreLess

## Features

* Bidirectional data transfer of IC-bus signals

* Isolates capacitance allowing 400 pF on Sx/Sy side and 4000 pF on Tx/Ty side

* Tx/Ty outputs have 60 mA sink capability for driving low-impedance or high capacitive buses

* 400 kHz operation over at least 20 meters of wire see AN10148

* Supply voltage range of 2 V to 15 V with IC-bus logic levels on Sx/Sy side independent of supply voltage

* Splits IC-bus signal into pairs of forward/reverse Tx/Rx, Ty/Ry signals for interface with opto-electrical isolators and similar devices that need unidirectional input and output signal paths.

* Low power supply current

* ESD protection exceeds 3500 V HBM per JESD22-A114, 250 V DIP package, 400 V SO package MM per JESD22-A115, and 1000 V CDM per JESD22-C101

* Latch-up free bipolar process with no latching structures

* Packages offered: DIP8, SO8 and TSSOP8

## Target Applications

* Interface between I²C-buses operating at different logic levels for example, 5 V and 3 V or 15 V

* Interface between I²C-bus and SMBus 350 µA standard

* Simple conversion of I²C-bus SDA or SCL signals to multi-drop differential bus hardware, for example, via compatible PCA82C250

* Interfaces with opto-couplers to provide opto-isolation between I²C-bus nodes up to 400 kHz

## Features

P82B96TD中文资料参数规格
技术参数

电源电压DC 5.00 V

耗散功率 300 mW

输入电容 7pF Max

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 300 mW

电源电压Max 15 V

电源电压Min 2 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-96

外形尺寸

封装 SOIC-96

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

P82B96TD引脚图与封装图
P82B96TD引脚图
P82B96TD封装图

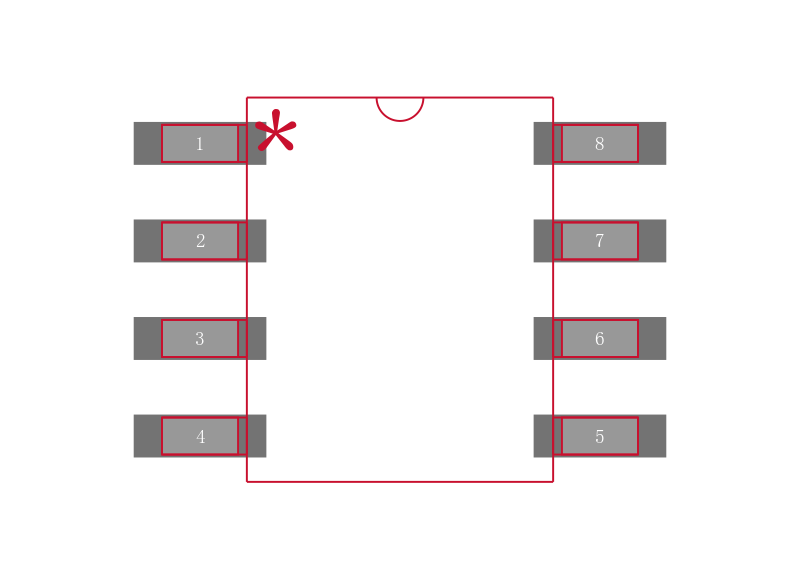

P82B96TD封装焊盘图
在线购买P82B96TD
型号: P82B96TD
制造商: NXP 恩智浦
描述:P82B96TD
替代型号P82B96TD
型号/品牌 代替类型 替代型号对比

P82B96TD

NXP 恩智浦

当前型号

当前型号

P82B96TD,118

恩智浦

功能相似

P82B96TD和P82B96TD,118的区别

P82B96TD,112

恩智浦

功能相似

P82B96TD和P82B96TD,112的区别

P82B96D

德州仪器

功能相似

P82B96TD和P82B96D的区别
