PESD5V0S1BA

NXP  PESD5V0S1BA  静电保护装置, TVS, 14 V, SOD-323, 2 引脚

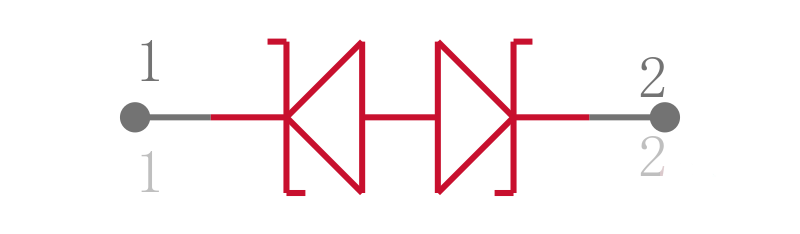

极性Polarization| 双向 Bidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 5V 反向击穿电压VBRBreakdown Voltage| 5.5V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 130W 峰值脉冲电流IPPmPeak Forward Surge Current| 12A 额定耗散功率PdPower dissipation| Description & Applications| Features • Low capacitance bidirectional ESD protection diodes • Bidirectional ESD protection of one line • ESD protection > 30 kV • Max. peak pulse power: PPP = 130 W • IEC 61000-4-2, level 4 ESD • Low clamping voltage: VCLR = 14 V • IEC 61000-4-5 surge; IPP = 12 A • Ultra low leakage current: IRM = 5 nA • Ultra small SMD plastic packages 描述与应用| 特性 •低电容双向二极管 •一条线双向ESD保护 •ESD保护> 30千伏 •最大峰值脉冲功率：Ppp=130 W •IEC61000-4-2第4级（ESD） •低钳位电压：V（CL）R= 14 V •IEC61000-4-5（浪涌），Ipp=12 A •超低漏电流：IRM= 5 nA •超小型塑料SMD封装
