PESD5V0L2BT参数规格_中文资料_数据手册PDF

PESD5V0L2BT概述

NXP PESD5V0L2BT 静电保护装置, TVS, 28 V, SOT-23, 3 引脚

The is a low capacitance double bidirectional ESD Protection Diode, designed to protect two signal lines from the damage caused by ESD and other transients. Optimum performance in high-frequency applications, increased layout flexibility and more PCB space and reduced power consumption for extended battery life. The flexible ESD protection for high-speed applications.

.: 5V Reverse standoff voltage

.: 75pF f=1MHz Capacitance

.: 30kV Electrostatic discharge capability

.: 80R at 1mA Differential resistance

ESD sensitive device, take proper precaution while handling the device.

PESD5V0L2BT中文资料参数规格

技术参数

击穿电压 7.60 V

针脚数 3

钳位电压 28 V

封装参数

安装方式 Surface Mount

引脚数 3

封装 SOT-23

外形尺寸

封装 SOT-23

其他

产品生命周期 Unknown

包装方式 Cut Tape CT

制造应用 Computers & Computer Peripherals, Consumer Electronics, 便携式器材, 音频, 计算机和计算机周边, 成像, 视频和目视, Portable Devices, 通信与网络, 消费电子产品, Communications & Networking, Audio, Imaging, Video & Vision

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

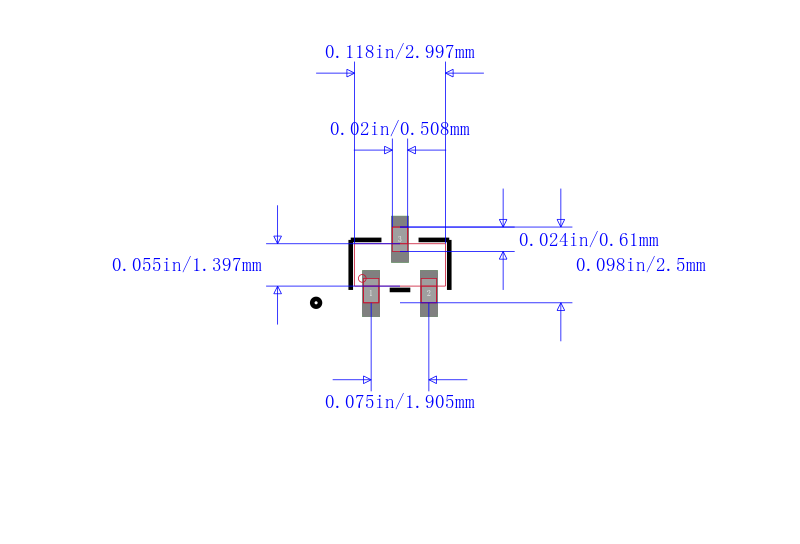

PESD5V0L2BT引脚图与封装图
