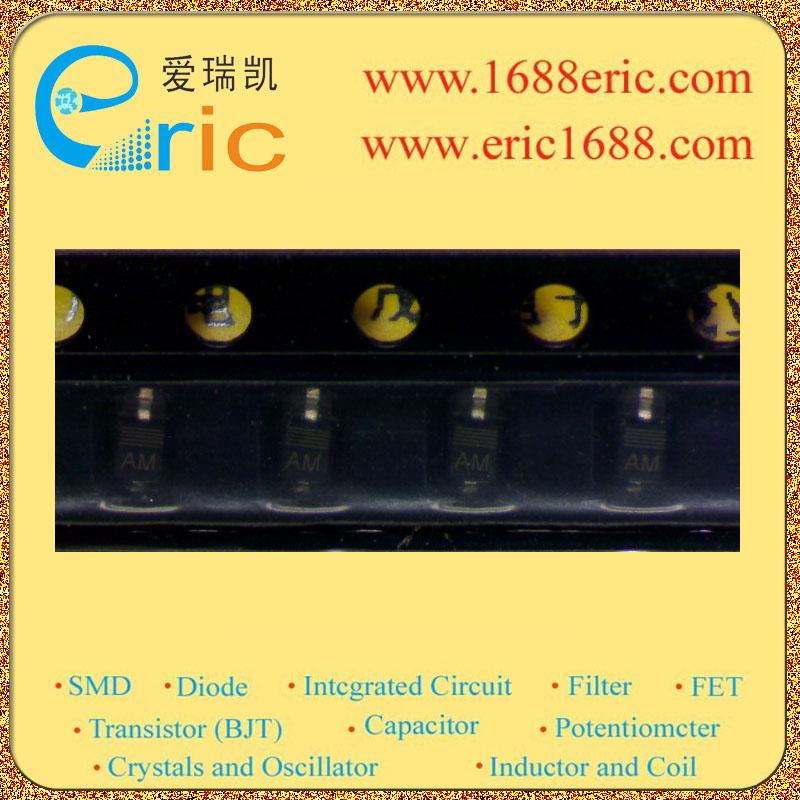

PESD1LIN

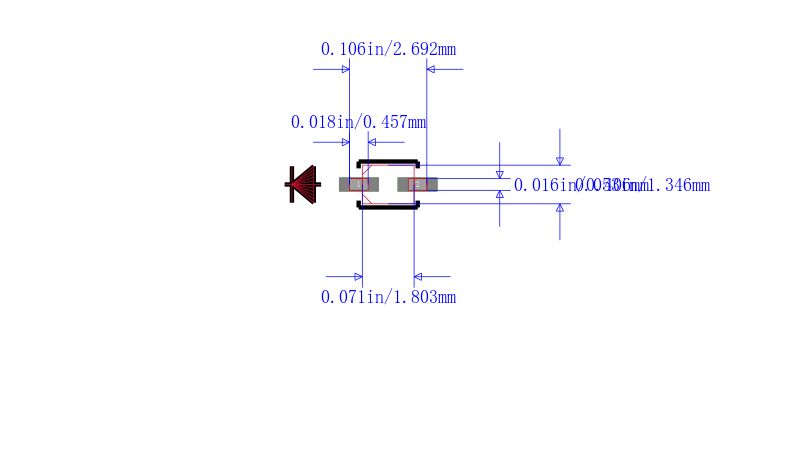

NXP  PESD1LIN  静电保护装置, TVS, 70 V, SOD-323, 2 引脚

极性Polarization| 双向 Bidirectional

\---|---

反向关断电压/工作电压VRWMReverse Standoff Voltage| 15V

反向击穿电压VBRBreakdown Voltage| 18.9V

峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 160W

峰值脉冲电流IPPmPeak Forward Surge Current| 3A

额定耗散功率PdPower dissipation|

Description & Applications| FEATURES •ESD protection of one automotive LIN bus line •Asymmetrical diode configuration ensures an optimized ElectroMagnetic •Immunity EMI of a LIN Electronic Control Unit ECU •Due to the integrated diode structure only one very small SOD323 package is needed •Max. peak pulse power: PPP = 160 W at tp = 8/20 µs •Low clamping voltage: VCL = 40 V at IPP = 1 A •Ultra low leakage current: IRM < 1 nA •ESD protection of up to 23 kV IEC 61000-4-2, level 4 ESD IEC 61000-4-5 surge; IPP = 3 A at tp = 8/20 µs

描述与应用| 特性 •汽车LIN总线 •不对称二极管配置确保优化电磁 •抗干扰能力（EMI）的林电子控制单元（ECU） •由于集成二极管结构只有一个非常小SOD323封装需要 •最大峰值脉冲功率：PPP=160 W@tp= 8/20μs •低钳位电压：VCL在IPP=1= 40 VÅ •超低漏电流：IRM<1 nA •高达23千伏ESD保护IEC61000-4-2第4级（ESD） IEC61000-4-5（浪涌）; IPP= 3 A@tp= 8/20μs
