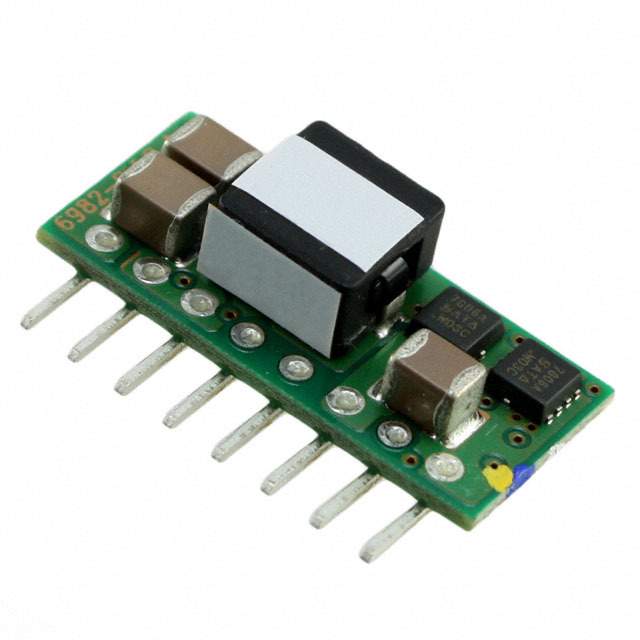

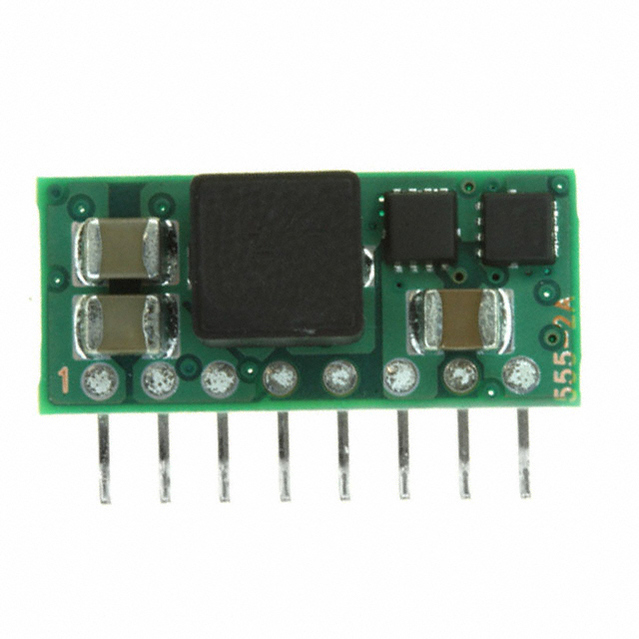

PTV12010WAH

TEXAS INSTRUMENTS  PTV12010WAH.  非隔离负载点直流/直流转换器, 可调, POLA, SIP, 44 W, 1.2 V, 5.5 V, 8 A

The is a 44W non-isolated Adjust SIP Module with Auto-Track™ sequencing. The PTV12010 series of non-isolated power module is part of a new class of complete DC/DC switching regulator modules from Texas Instruments. This module combine high performance with double-sided, surface mount construction to give designers the flexibility to power the most complex multiprocessor digital systems using off-the-shelf catalogue parts. Operating from a 12V input bus, series provides step-down conversion to a wide range of output voltages, at up to 8A of output current. The output voltage of the W-suffix parts can be set to any value over the range of 1.2 to 5.5V. The L-suffix parts have an adjustment range of 0.8 to 1.8V. Auto-Track™ simplifies the task of supply-voltage sequencing in a power system by enabling the output voltage of multiple modules to accurately track each other or any external voltage, during power up and down.

.

Wide-output voltage adjust

.

Efficiencies up to 93%

.

ON/OFF inhibit

.

Prebias start up

.

Under-voltage lockout

.

Auto-Track sequencing

.

Output over-current protection non-latching, auto-reset
