PFE5KR370

Res Wirewound 0.37Ω 10% 925W 300ppm/℃ Screw Terminal Bolt-On/Bracket Mount

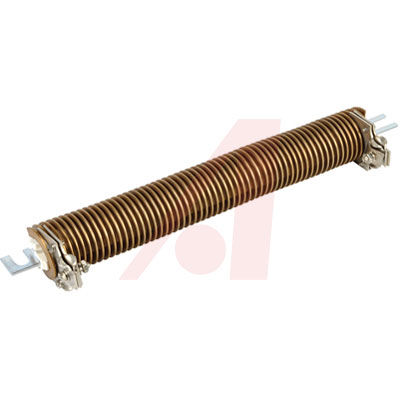

Powr-Rib® are designed to handle 700-1000 watts of power. Their construction consists of thick, heavy resistance alloy wound around porcelain ceramic core insulators supported by a metal mounting bar. The bar is slotted on each end to facilitate installation. Edgewound Powr-Rib® provide low resistance at high current ratings, while Round Wire Powr-Rib® provide higher resistance at lower current ratings. Clamp-type terminals on the Edgewound units permit a reliable connection that can be moved along the resistive element to obtain intermediate values.

.

*Tolerance:** ±10%. **Average Weight:** 3 Lbs. 16.25" Long between mounting centers.
