100 -W 48 V的输入隔离DC / DC转换器 100-W 48-V INPUT ISOLATED DC/DC CONVERTER
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a temperature range of -40 °C to 85 °C. The component will be shipped in tray format.
得捷:
DC DC CONVERTER 5V 100W
贸泽:
Isolated DC/DC Converters 100-W 48-V In 5-VOut
艾睿:
Provide the ability to switch between voltages by using this step down PTQA420050P2AD DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a temperature range of -40 °C to 85 °C. The component will be shipped in tray format.
安富利:
Module DC-DC 1-OUT 5V 30A 100W 8-Pin DIP Module
Chip1Stop:
Module DC-DC 48VIN 1-OUT 5V 30A 100W 8-Pin DIP Module
Verical:
Module DC-DC 48VIN 1-OUT 5V 30A 100W 8-Pin DIP Module Tray
电源电压DC 48.0 V
额定功率 100 W
输出接口数 1
输入电压DC 36.0V ~ 75.0V
输出电压 5 V
输出电流 30 A
易燃性等级 UL 94 V-0
调节输出数 1
输出功率 100 W
隔离电压 1.5 kV
输入电压Max 75 V
输入电压Min 36 V
输出电流Max 20 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 36V ~ 75V
安装方式 Through Hole
引脚数 8
封装 DIP-8

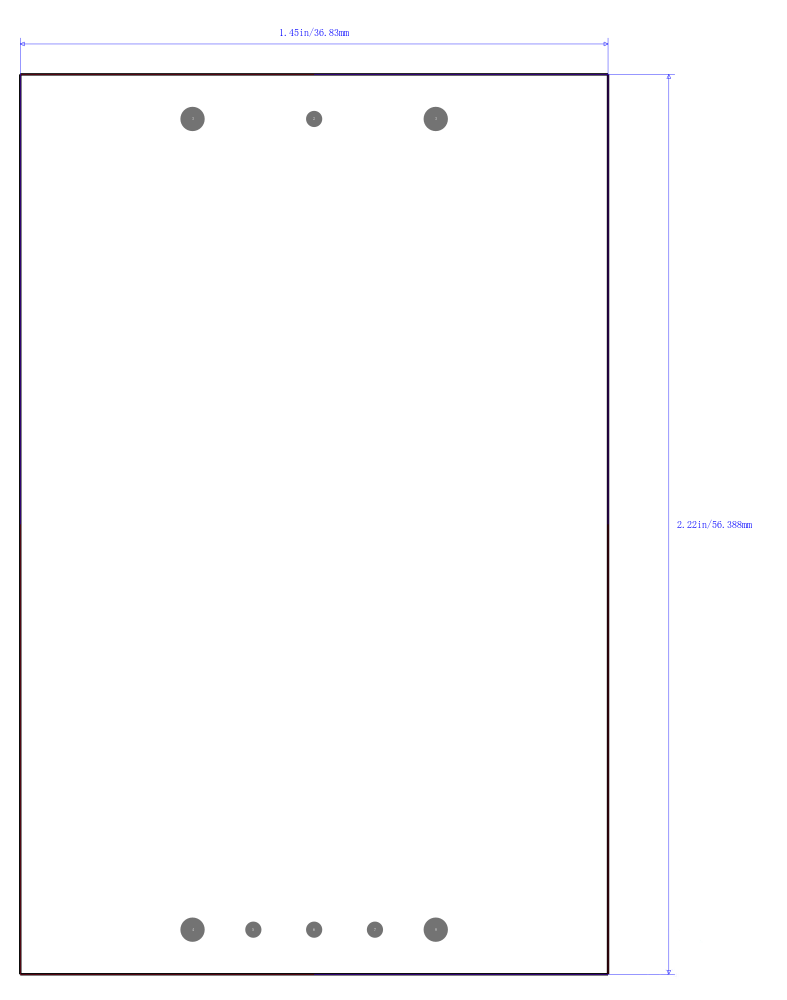

长度 36.8 mm
宽度 56.4 mm
高度 11.75 mm
封装 DIP-8
重量 30.0 g
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
