LITTELFUSE PGB102ST23WR 静电保护装置, 150 V, SOT-23, 3 引脚
The is a PULSE-GUARD® bi-directional surface-mount Electrostatic Discharge Suppressor. It helps to protect sensitive electronic equipment against electrostatic discharge ESD. They supplement the on-chip protection of integrated circuitry and are best suited for low-voltage, high-speed applications where low capacitance is important. Data ports utilizing such high-speed protocols as USB 2.0, IEEE1394, HDMI and DVI can benefit from this new technology. The PULSE-GUARD® PGB1 series suppressor use polymer composite materials to suppress fast-rising ESD transients as specified in IEC 61000-4-2, while adding virtually no capacitance to the circuit.
额定电压DC 24.0 V
工作电压 24.0V max
电容 0.12 pF
击穿电压 500 V

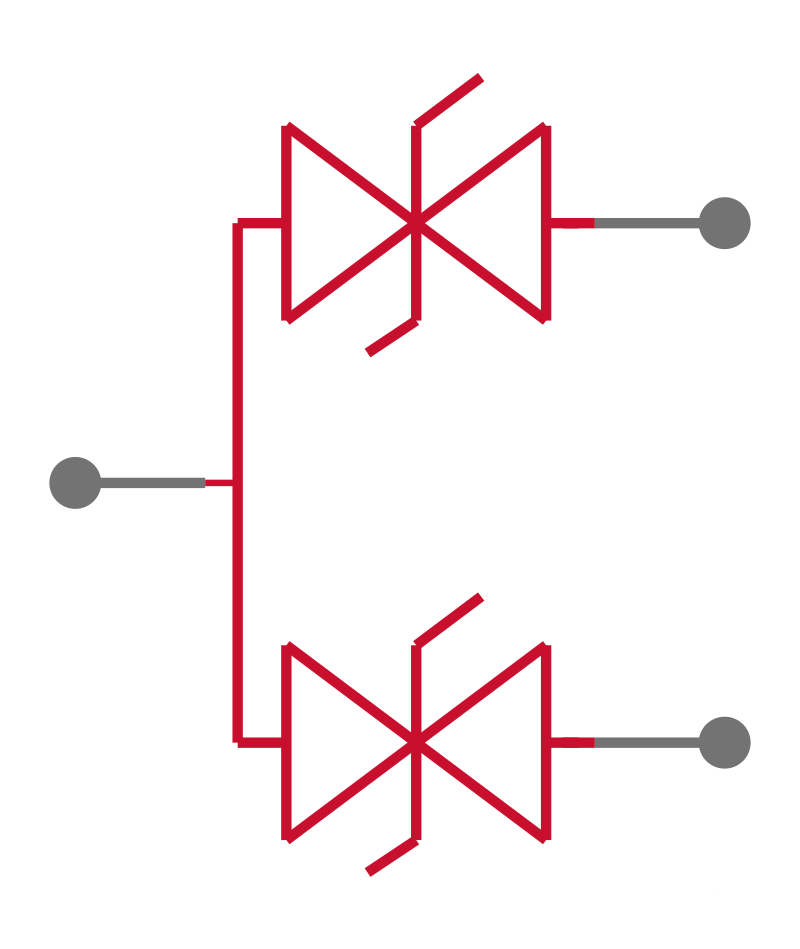

电路数 2
针脚数 3
钳位电压 150 V
工作温度Max 125 ℃
工作温度Min -65 ℃
额定电压Max 24 VDC
安装方式 Surface Mount
引脚数 3

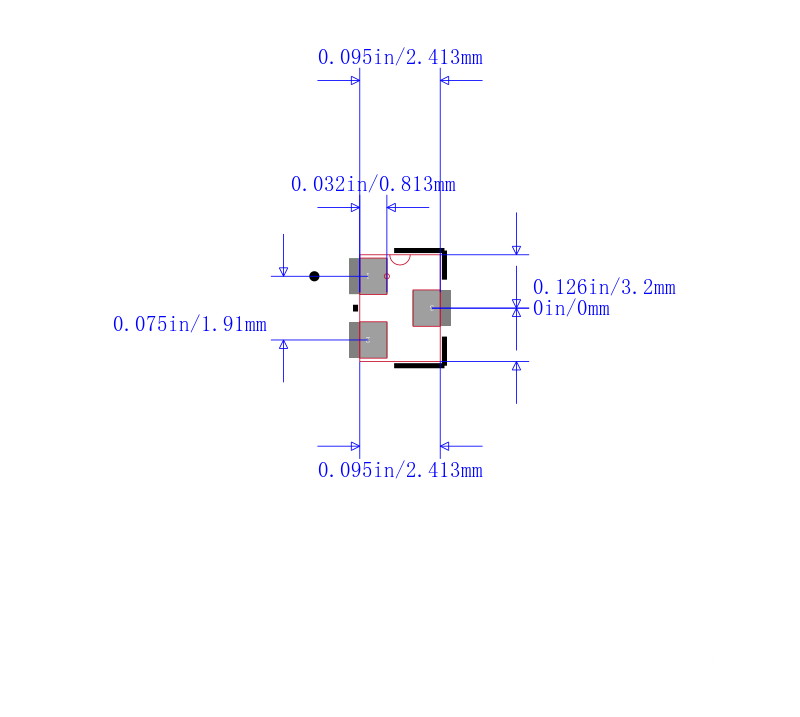

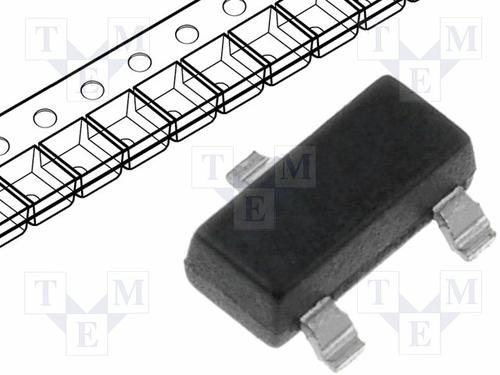

封装 SOT-23-3
长度 3 mm
宽度 2.99 mm
高度 0.69 mm
封装 SOT-23-3
工作温度 -65℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用, Communications & Networking, Consumer Electronics, 计算机和计算机周边, Computers & Computer Peripherals, 通信与网络, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PGB102ST23WR Littelfuse 力特 | 当前型号 | 当前型号 |
PGB102ST23WRHF 力特 | 完全替代 | PGB102ST23WR和PGB102ST23WRHF的区别 |
PGB1010603 力特 | 功能相似 | PGB102ST23WR和PGB1010603的区别 |
PGB102ST23 力特 | 功能相似 | PGB102ST23WR和PGB102ST23的区别 |
