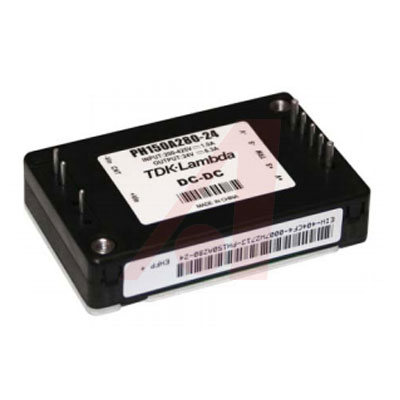

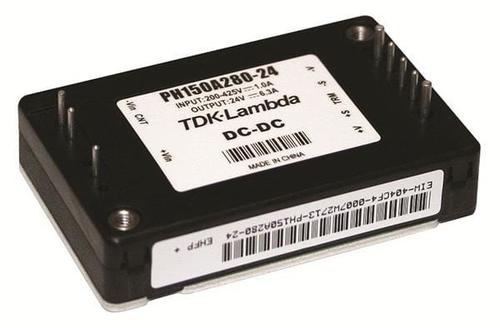

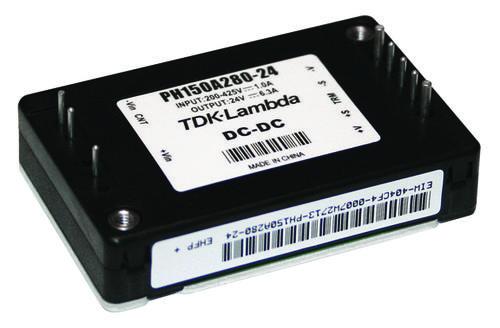

Isolated Board Mount DC-DC Converter, Quarter Brick, Fixed, Adjustable, Through Hole, 75.6W
-Lambda PH-A280 DC-DC Converters operate from 200 to 425VDC input. The quarter-brick modules are available in four output power levels of 50W, 75W, 100W, and 150W. Nominal output voltages of 5V, 12V, 24V, and 48Vdc are adjustable by -20% to +10% +/- 20% for 5V models.
With a wide temperature range of -40 to 100ºC, the modules are suitable for liquid, air cooled, or conduction cooled systems. PH-A280 series include remote sense, remote on/off, overvoltage/overcurrent protection, and come with a 5-year warranty. These DC-DC converters are ideal for HVDCHigh Voltage DC Current and solar cell related applications.
"PH-A280 Series 50-150W, 200 to 425VDC Input DC-DC Converters
Features:
200 - 425VDC Input
Base-plate Cooled
Full Power at 100°C base plate
Quarter Brick Footprint
"
