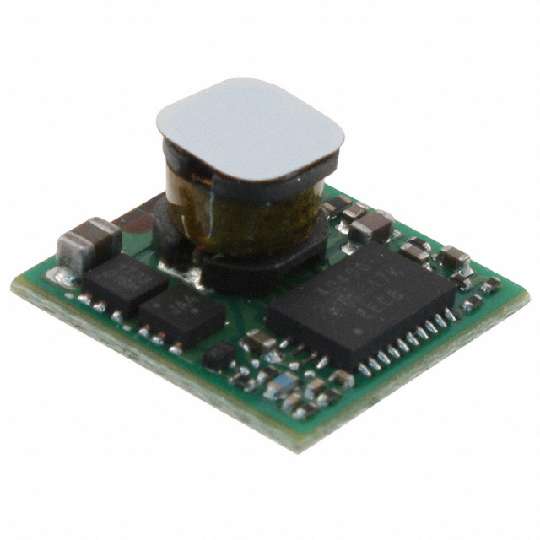

Module DC-DC 1Out 0.45V to 5.5V 6A 17Pin SMD Module T/R
* Compliant to RoHS II EU “Directive 2011/65/EU” * Compatible in a Pb-free or SnPb reflow environment * Compliant to IPC-9592 September 2008, Category 2, Class II * DOSA based * Wide Input voltage range 3Vdc-14.4Vdc * Output voltage programmable from 0.6Vdc to 5.5Vdc via external resistor. Digitally adjustable down to 0.45Vdc * Digital interface through the PMBusTM # protocol * Tunable LoopTM to optimize dynamic output voltage response * Flexible output voltage sequencing EZ-SEQUENCE * Power Good signal * Fixed switching frequency with capability of external synchronization * Output overcurrent protection non-latching * Over temperature protection * Remote On/Off * Ability to sink and source current * Cost efficient open frame design * Small size: 12.2 mm x 12.2 mm x 7.25 mm 0.48 in x 0.48 in x 0.29 in * Wide operating temperature range [-40°C to 105°C Ruggedized: -D, 85°CRegular] * UL* 60950-1Recognized, CSA† C22.2 No. 60950-1-03 Certified, and VDE‡ 0805:2001-12 EN60950-1 Licensed * ISO** 9001 and ISO 14001 certified manufacturing facilities
输出接口数 1
输入电压Max 14.4 V
输入电压Min 3 V
输出电流Max 6 A
输入电压 3VDC ~ 14.4VDC
安装方式 Surface Mount
封装 12.2 mm x 12.2 mm x 7.25 mm
长度 12.2 mm
宽度 12.2 mm
高度 7.25 mm
封装 12.2 mm x 12.2 mm x 7.25 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
