PE-0402CD7N5JTG

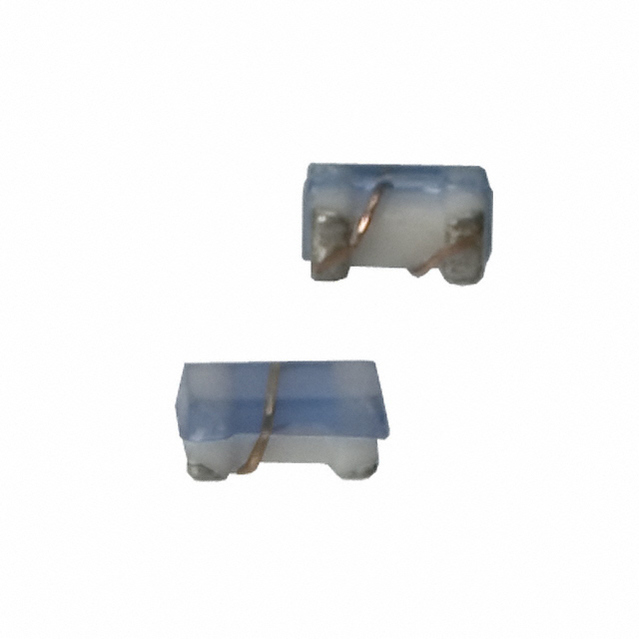

PE-0402CD7N5JTG图片1
PE-0402CD7N5JTG图片2
PE-0402CD7N5JTG图片3
PE-0402CD7N5JTG图片4
PE-0402CD7N5JTG图片5
PE-0402CD7N5JTG图片6
PE-0402CD7N5JTG概述

0402 7.5nH ±5% 680mA

7.5nH Unshielded Wirewound Inductor 680mA 104mOhm Max 0402 1005 Metric


得捷:
FIXED IND 7.5NH 680MA 104 MOHM


艾睿:
Save valuable space on a PCB with this rf chip PE-0402CD7N5JTG surface mount inductor from Pulse. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 7.5n H. This product is 1.19 mm long, 0.61 mm tall and 0.66 mm deep. This SMD inductor has a maximum DC current of 680m A with a maximum resistance of 104m Ohm. It has a tolerance of 5%. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 5.8G Hz. This device utilizes wirewound technology.


Chip1Stop:
Ind RF Chip Wirewound 7.5nH 5% 250MHz 25Q-Factor Ceramic 680mA 0402 T/R


Verical:
Inductor RF Chip Wirewound 0.0075uH 5% 250MHz 25Q-Factor Ceramic 0.68A 0.104Ohm DCR 0402 T/R


CDI:
SURFACE MOUNT INDUCTORS-LEAD FREE


PE-0402CD7N5JTG中文资料参数规格
技术参数

额定电流 680 mA

容差 ±5 %

电感 7.5 nH

自谐频率 5.8 GHz

Q值 25

产品系列 0402CD

屏蔽 No

电感公差 ±5 %

测试频率 250 MHz

电阻DC) ≤104 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 0.104 Ω

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

外形尺寸

长度 1.19 mm

宽度 0.66 mm

高度 0.61 mm

封装公制 1005

封装 0402

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 End of Life

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

PE-0402CD7N5JTG引脚图与封装图
PE-0402CD7N5JTG引脚图
PE-0402CD7N5JTG封装图
PE-0402CD7N5JTG封装焊盘图
在线购买PE-0402CD7N5JTG
型号: PE-0402CD7N5JTG
制造商: Pulse Electronics 普思电子
描述:0402 7.5nH ±5% 680mA
