固定电感器 1000nH 10%
1 µH 无屏蔽 绕线 器 200 mA 1.8 欧姆最大 1008(2520 公制)
得捷:
FIXED IND 1UH 200MA 1.8 OHM SMD
立创商城:
1uH ±10%
贸泽:
固定电感器 1000nH 10%
艾睿:

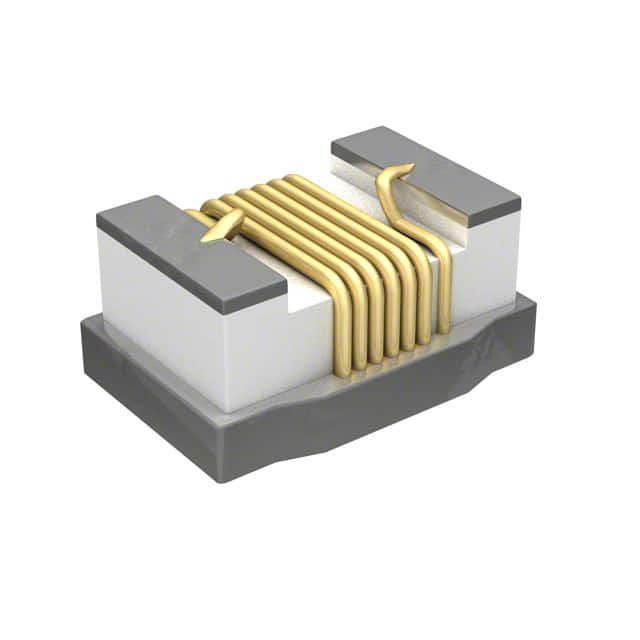

Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip PE-1008CM102KTT surface mount inductor from Pulse to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device is made with wirewound technology. This product is 2.92 mm long, 2.29 mm tall and 2.79 mm deep. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 1.8 Ohm. It has a tolerance of 10%. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 300M Hz. It has an inductance of 1u H.
安富利:
Ind RF Chip Wirewound 1uH 10% 25MHz 40Q-Factor Ceramic 200mA 1008 T/R
Verical:
Inductor RF Chip Wirewound 1uH 10% 25MHz 40Q-Factor Ceramic 0.2A 1.8Ohm DCR 1008 T/R
额定电流 200 mA
容差 ±10 %
电感 1 µH
自谐频率 300 MHz
Q值 40
产品系列 1008CM
电感公差 ±10 %
测试频率 25 MHz
电阻DC) 1.8 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 1.8 Ω
安装方式 Surface Mount
封装 1008
长度 2.92 mm
宽度 2.79 mm
高度 2.29 mm
封装 1008
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
