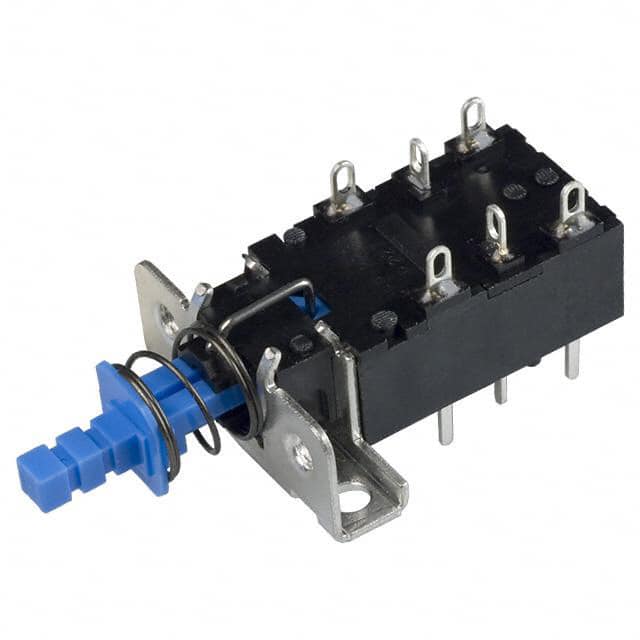

P227 系列 双刀双掷 闭锁 焊片 面板安装 功率 按键开关
Switch Push Button ON ON DPDT Square Plunger 7A 250VAC Latching PC Pins Panel Mount/Through Hole
贸泽:
按钮开关 DPDT PWR W/BRACKET
富昌:
P227 系列 双刀双掷 闭锁 焊片 面板安装 功率 按键开关
Chip1Stop:
Switch Push Button ON ON DPDT Square Plunger 7A 250VAC PC Pins Panel Mount/Through Hole
Verical:
Switch Push Button ON ON DPDT Square Plunger 7A 250VAC Latching PC Pins Panel Mount/Through Hole
Newark:
# E-SWITCH P227EE2B18A Pushbutton Switch, Latching, DPDT, 125 V, 7 A, Through Hole
MASTER:
Pushbutton Switch - DPDT - Standard - 7A - 125VAC - Blue Plunger for Cap Actuator - PC Pin - Panel Mount - Right Angle.
Online Components:
Switch Push Button ON ON DPDT Square Plunger 7A 250VAC Latching PC Pins Panel Mount/Through Hole
Electro Sonic:
Pushbutton Switch - DPDT - Standard - 7A - 125VAC - Blue Plunger for Cap Actuator - PC Pin - ...
触点电镀 Silver
额定电压AC 125 V
额定电流 7A AC
方向 Right Angle
触点类型 DPDT
触点额定电流 7.00 A
额定电流Max 7 A
额定电压AC Max 250 V
接触电阻Max 20 mΩ
安装方式 Through Hole
长度 26 mm
宽度 44.5 mm
高度 16.5 mm
触点材质 Copper Alloy
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
HTS代码 8538908080
