PE-0603CD220JTT

0603 22nH ±5% 700mA

22nH Unshielded Wirewound Inductor 700mA 190mOhm Max 0603 1608 Metric

立创商城:
22nH ±5%

得捷:
FIXED IND 22NH 700MA 190MOHM SMD

艾睿:

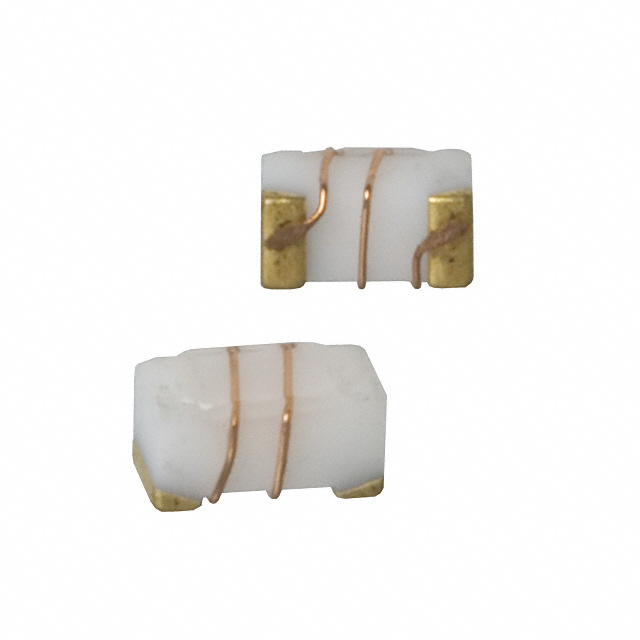

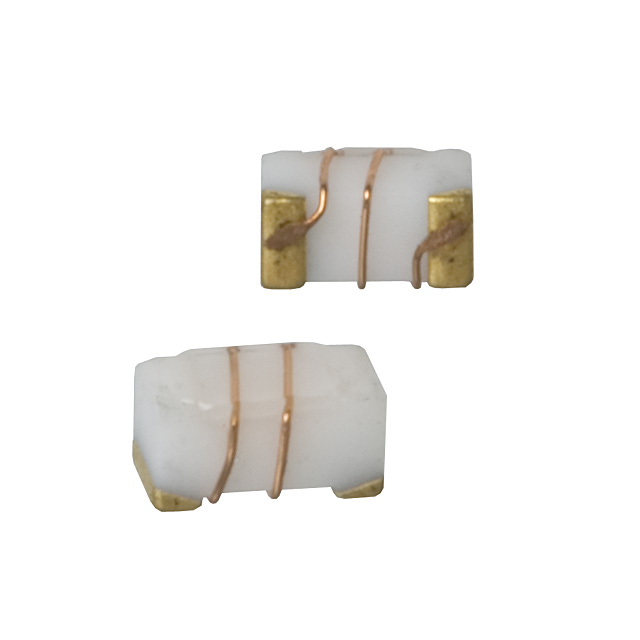

This rf chip PE-0603CD220JTT surface mount inductor from Pulse is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 5%. It has an inductance of 22n H. This device utilizes wirewound technology. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 3G Hz. This SMD inductor has a maximum DC current of 700m A with a maximum resistance of 190m Ohm. This product is 1.8 mm long, 1.02 mm tall and 1.24 mm deep.

安富利:
Ind RF Chip Wirewound 22nH 5% 250MHz 35Q-Factor Ceramic 700mA 0603 T/R

Chip1Stop:
Ind RF Chip Wirewound 22nH 5% 250MHz 35Q-Factor Ceramic 700mA 1.6 x 0.8 mm T/R

Verical:
Inductor RF Chip Wirewound 0.022uH 5% 250MHz 35Q-Factor Ceramic 0.7A 0.19Ohm DCR 0603 T/R

CDI:
SURFACE MOUNT INDUCTORS-LEAD FREE
